Our Products

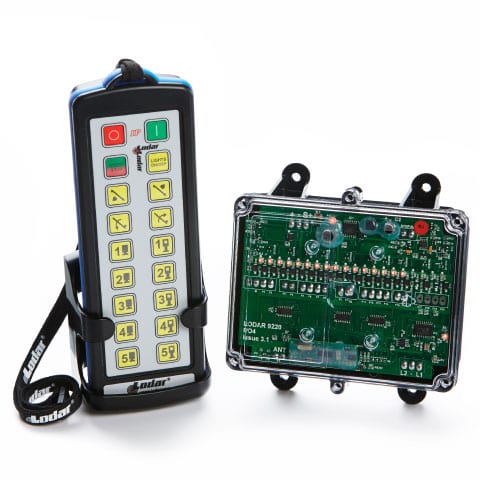

Radio Remotes

From automation to towing, radio remotes have universal use across dozens of industries, sourced directly from the UK. Choose from a range of 1 to 40 functions. Large tactile buttons presenting each function operation are protected by a wipe clean overlay, with thousands of function images to choose from. Each system can be programmed to suit its application with little to no limits. Latched buttons, time-outs and Deadman operation detail only a few of the many programming options available.

Lodar Parts & Accessories

  • Cradles

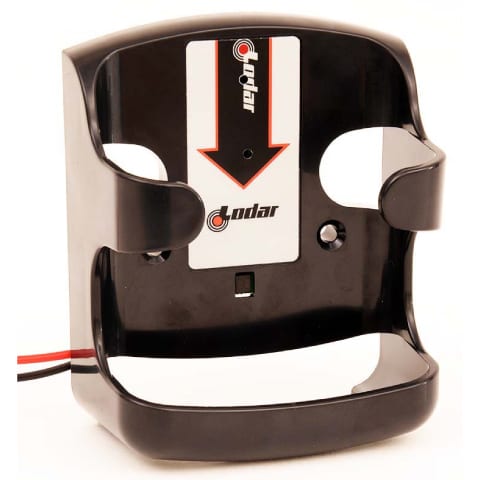

    Lodar Transmitter Holders
    • Plastic Molded Design
    • Easy Install of Buzzer Design
    • Make in the UK
    Model Code DescriptionSpec Sheet

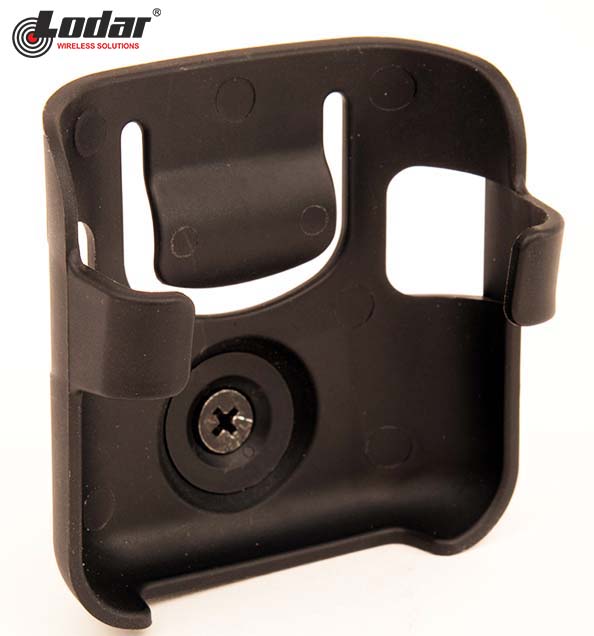

    9810LoCator for Mini Series RemoteDownload

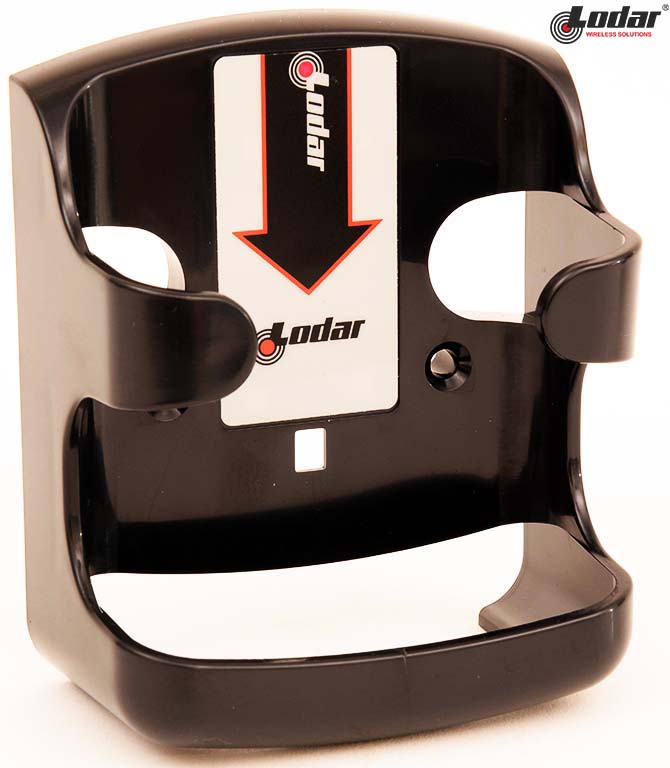

    9812LoCator for IP Series & Standard Series RemoteDownload

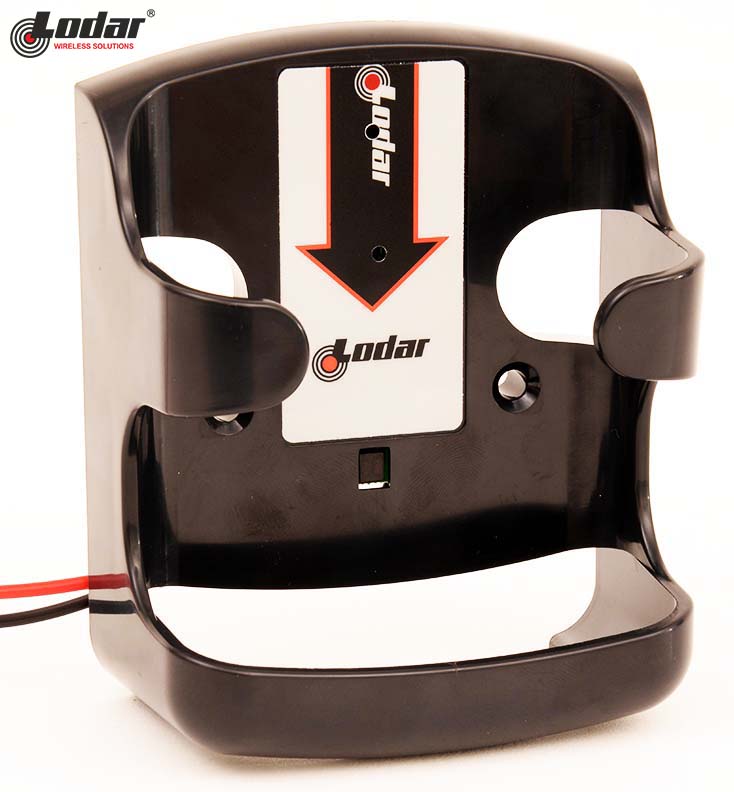

    9813LoCator for IP Series & Standard Series Remote with LED and BuzzerDownload

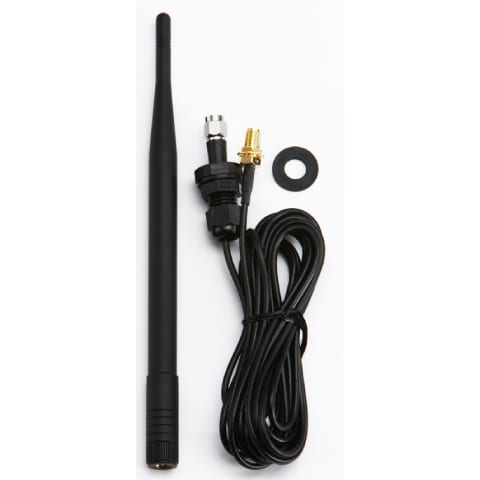

  • Aerial Kits

    Lodar 1m - 9m Pre-Made Kits
    • Varied Lengths
    • Improves Line of Sight
    • Push Fit Install
    Model Code DescriptionSpec Sheet

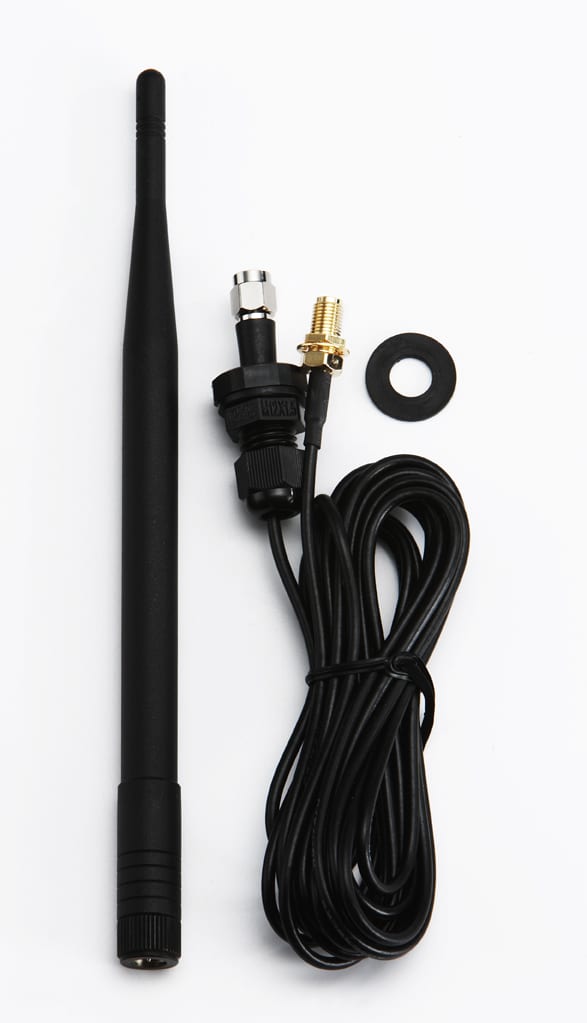

    9861Aerial Kit with 1m CableDownload
    9863Aerial Kit with 3m CableDownload
    9869Aerial Kit with 9m CableDownload

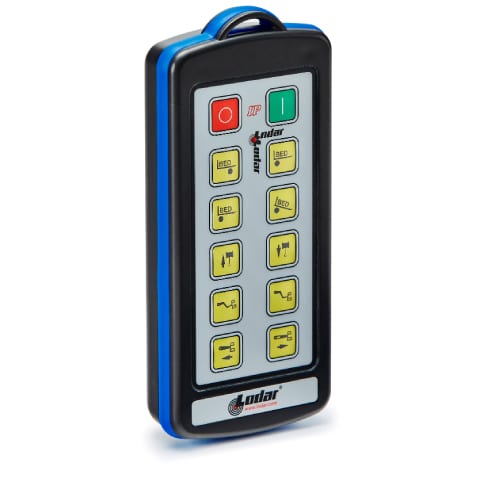

  • Transmitters

    All Lodar Series
    • Up to IP67 Rated
    • Can be Sold Seperately to Receiver
    • Custom Labels Available
    • Come with Lanyard
    Model Code DescriptionSpec Sheet
    90002TX-32 Button TransmitterDownload
    90004TX-34 Button TransmitterDownload
    92101TX-32 Button TransmitterDownload
    92102TX-32 Button TransmitterDownload
    92104TX-34 Button TransmitterDownload
    TX30022 Button TransmitterDownload
    TX30044 Button TransmitterDownload
    92202TX-32 Button TransmitterDownload
    92204TX-34 Button TransmitterDownload
    92206TX-36 Button TransmitterDownload
    92210TX-310 Button TransmitterDownload
    92216TX-316 Button TransmitterDownload
    92220TX-320 Button TransmitterDownload
    92330TX-320 Button Transmitter (Shift Function)
    92336TX-320 Button Transmitter (Shift Function)
    92340TX-320 Button Transmitter (Shift Function)

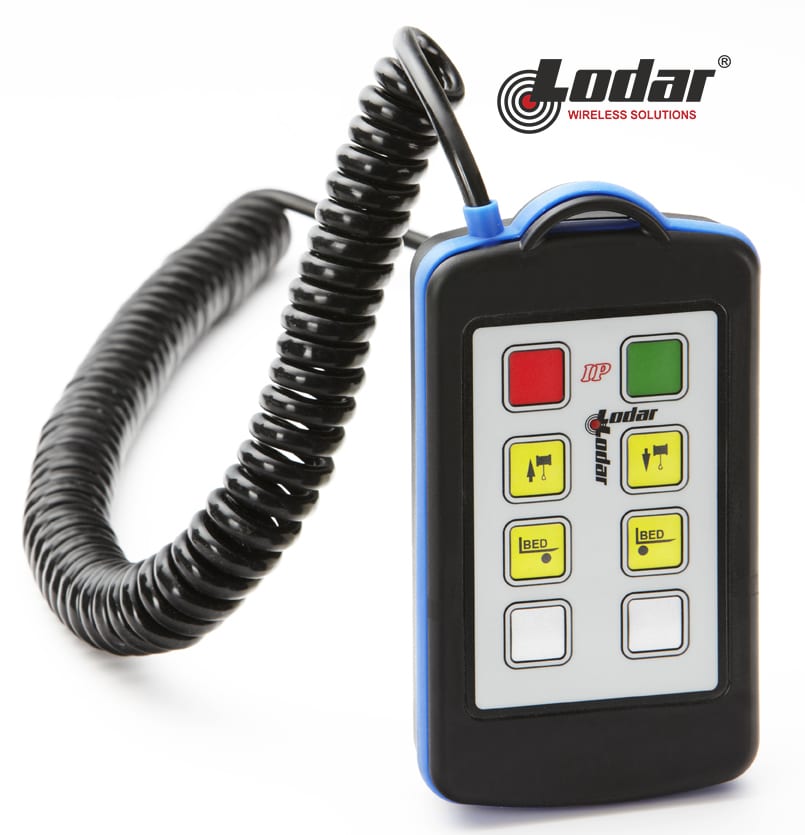

    96044 Button Wired Transmitter c/w receiver connectionDownload

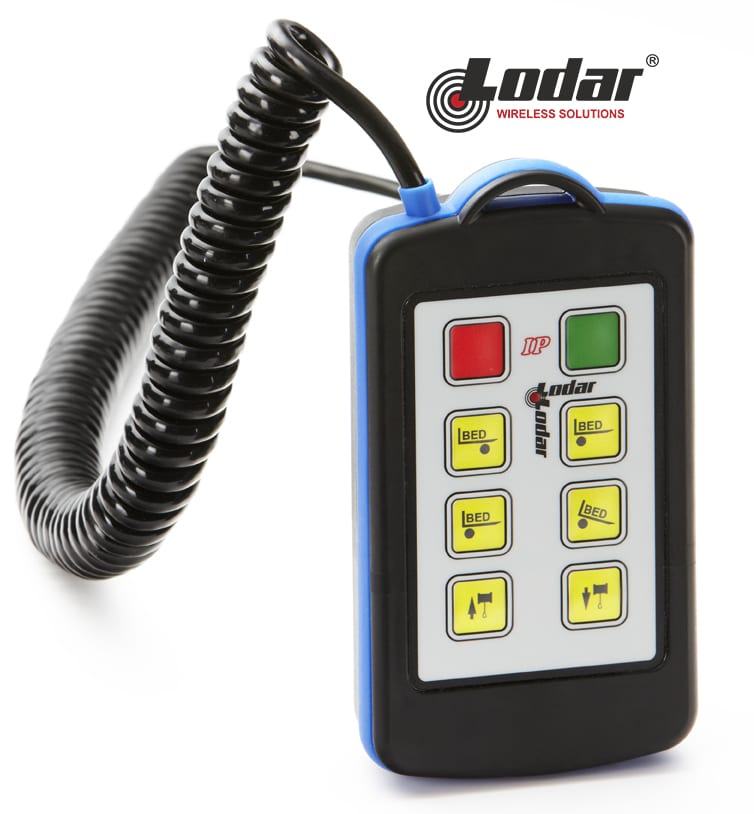

    96066 Button Wired Transmitter c/w receiver connectionDownload

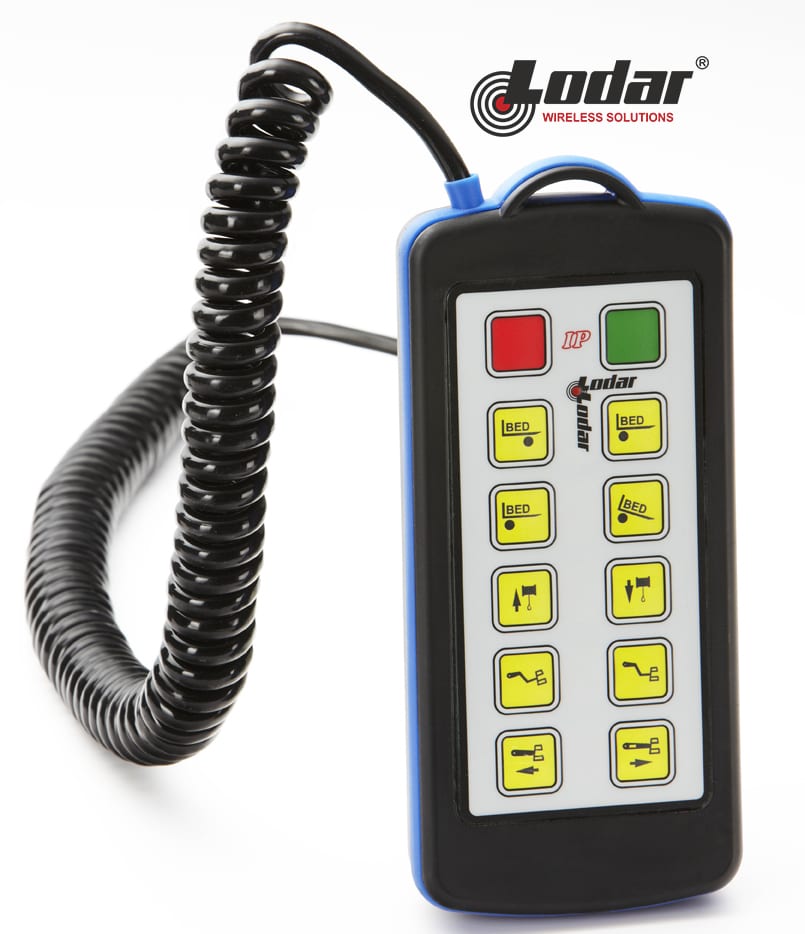

    961010 Button Wired Transmitter c/w receiver connectionDownload

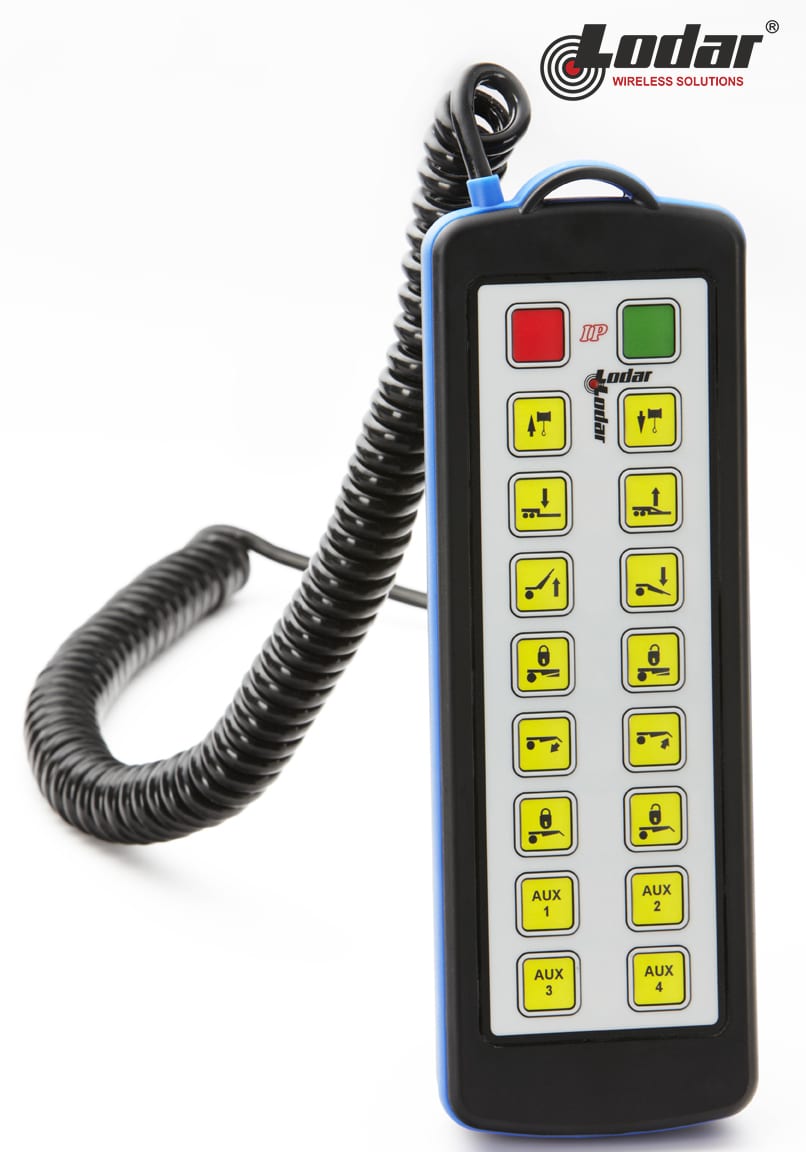

    961616 Button Wired Transmitter c/w receiver connectionDownload

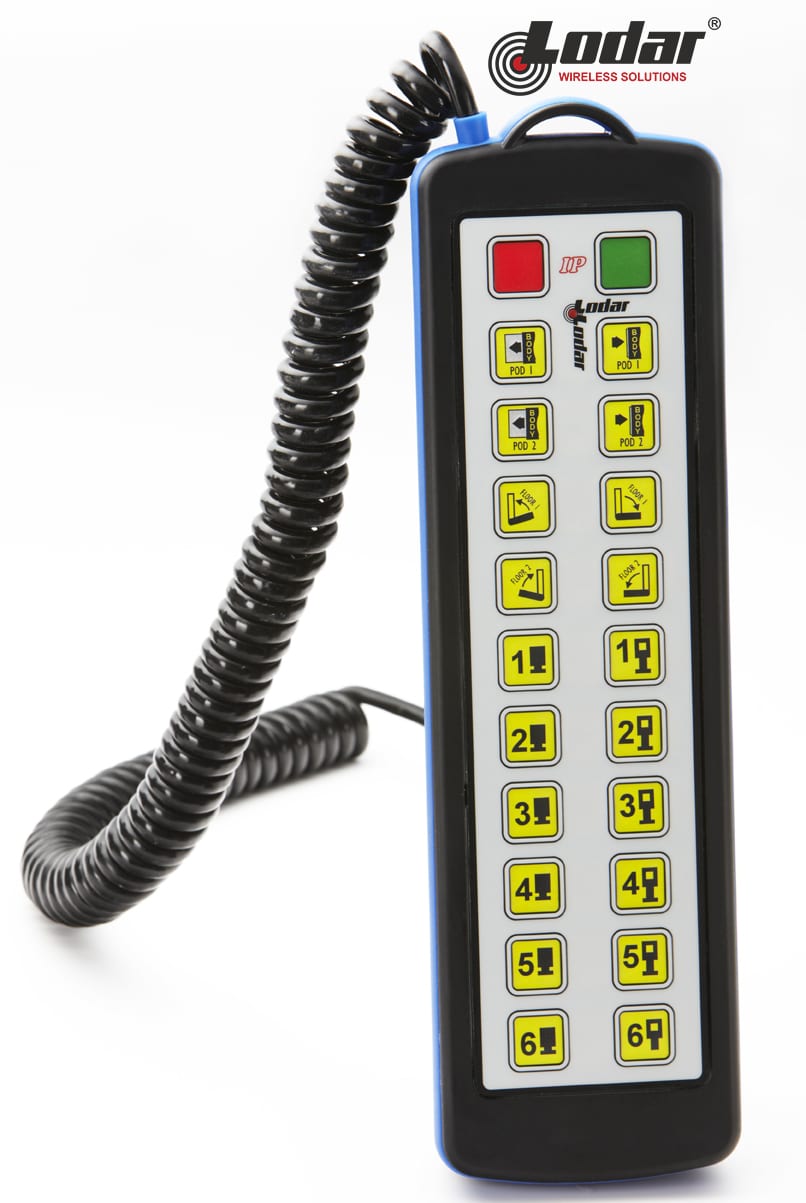

    962020 Button Wired Transmitter c/w receiver connectionDownload

  • Receivers

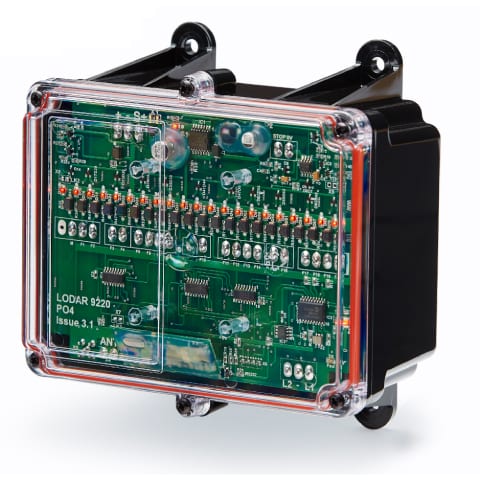

    Lodar 92 Series 1-20 Function
    • Up to IP67 Rated
    • Can be Sold Seperately to Transmitter
    • Multi-voltage
    Model Code DescriptionSpec Sheet
    9201RX1 Function Receiver
    9202RX2 Function ReceiverDownload
    9204RX4 Function ReceiverDownload
    9206RX6 Function ReceiverDownload
    9208RX8 Function ReceiverDownload
    9210RX10 Function ReceiverDownload
    9216RX16 Function ReceiverDownload
    9220RX20 Function ReceiverDownload
    9202RXK2 Function Receiver, KeypadDownload
    9204RXK4 Function Receiver, KeypadDownload
    9206RXK6 Function Receiver, KeypadDownload

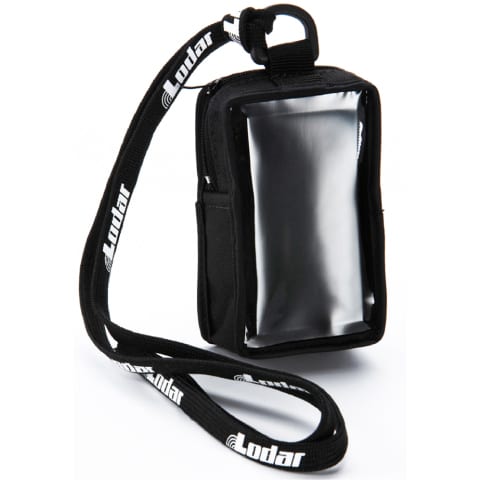

  • Fabric Covers

    Lodar Transmitter Covers
    • Clear Front
    • Lanyard Ring
    • Press Fit Design
    Model Code DescriptionSpec Sheet

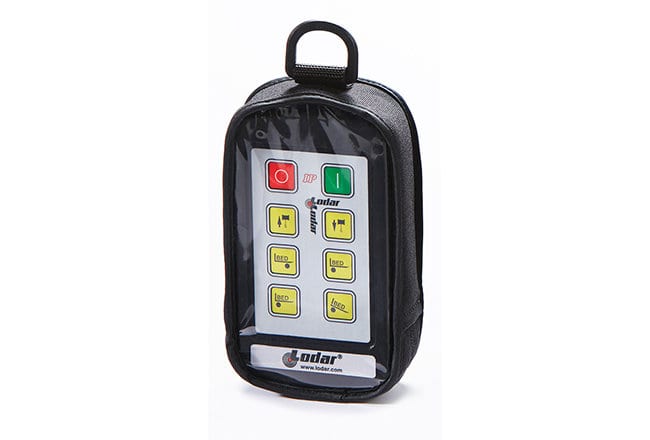

    9805Fabric with Clear Face - 2-6 FunctionDownload

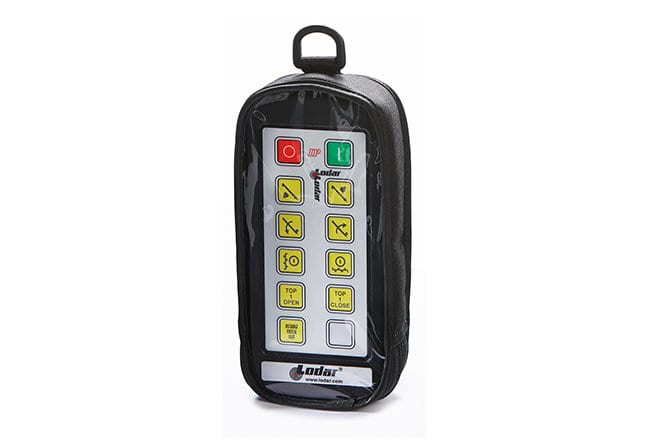

    9806Fabric with Clear Face - 10 FunctionDownload

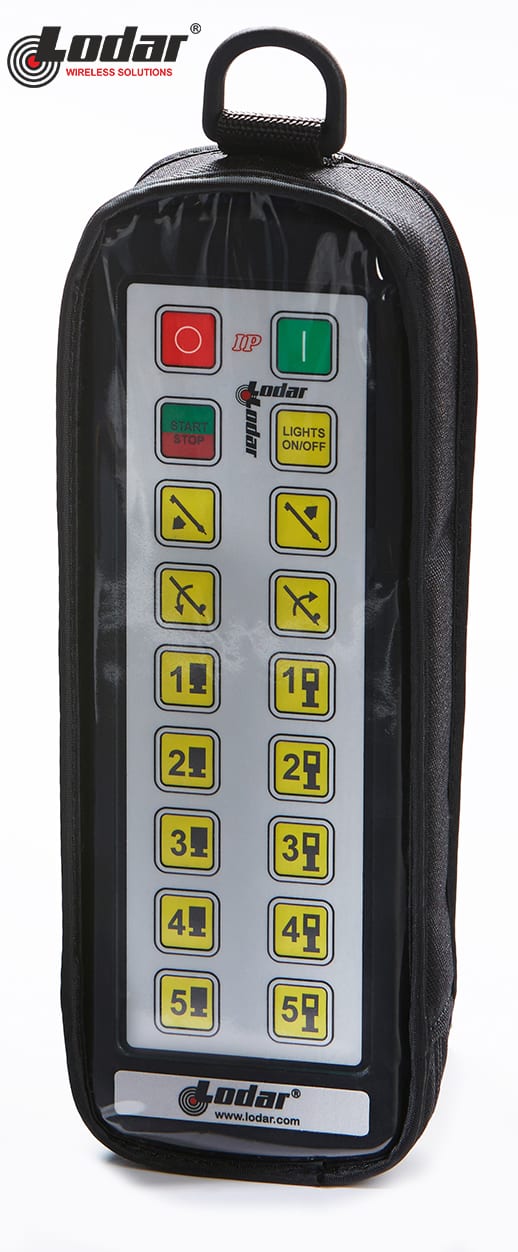

    9807Fabric with Clear Face - 16 FunctionDownload

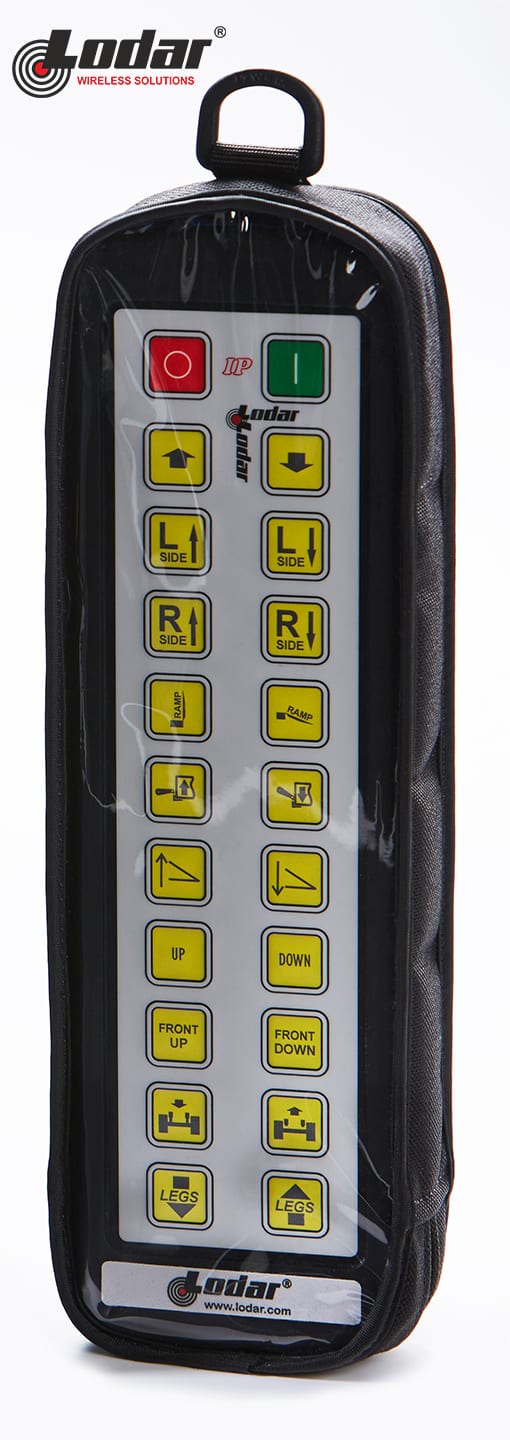

    9808Fabric with Clear Face - 20 FunctionDownload

Magnetek Systems

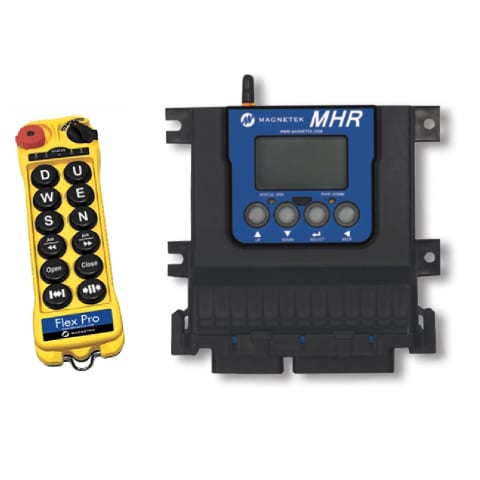

  • 8-12 Proportional Control

    Magnetek FLEX-PRO & MHR Series
    • 12 or 24 VDC
    • Push Buttons or Two-Step Detent
    • Raised E-Stop
    • On/Off/Start Switch
    • Compatible with Proportional Valves
    Model Code Number of functionsRangeTX protectionRX protectionSpec Sheet
    FLEX-8-PRO/MHR8 Functions, 8 Buttons + Key Start/Stop60 MIP66IP66Download
    FLEX-12-PRO/MHR12 Functions, 12 Buttons + Key Start/Stop60 MIP66IP66Download

  • 4-12 Push Button Control

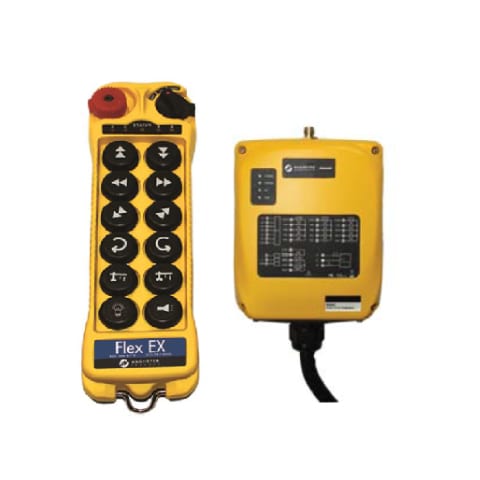

    Magnetek FLEX-EM Series
    • 12 or 24 VDC
    • Push Buttons or Two-Step Detent
    • Raised E-Stop
    • On/Off/Start Switch
    • Removable Key Lock-Out
    • Protective Rubber Boot
    Model Code Number of functionsRangeTX protectionRX protectionSpec Sheet
    FLEX-4EM4 Functions, 4 Buttons + Key Start/Stop60 MIP66IP66Download
    FLEX-8EM8 Functions, 8 Buttons + Key Start/Stop60 MIP66IP66Download
    FLEX-12EM12 Functions, 12 Buttons + Key Start/Stop60 MIP66IP66Download

Lodar Systems

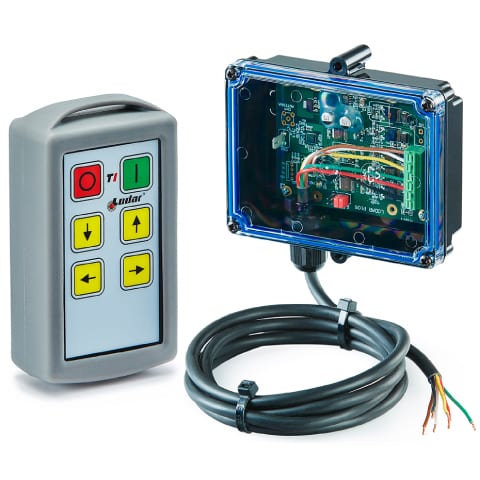

  • Basic 111 Series Kit

    Lodar System with Standard TX
    • On & Off Control Buttons
    • 16 Million Codes for Added Safety
    • Overload & Reverse Polarity Protection
    • Superior 433 MHZ Frequency
    • Mini Receiver Box (Not Potted)
    Model Code Number of functionsMaster outputCurrent ratingRangeTX protectionRX protectionSpec Sheet
    111000-32 Functions, 2 ButtonsNo3 AMPS45 MIP54IP67Download
    111002-32 Functions, 2 ButtonsYes3 AMPS45 MIP54IP67Download

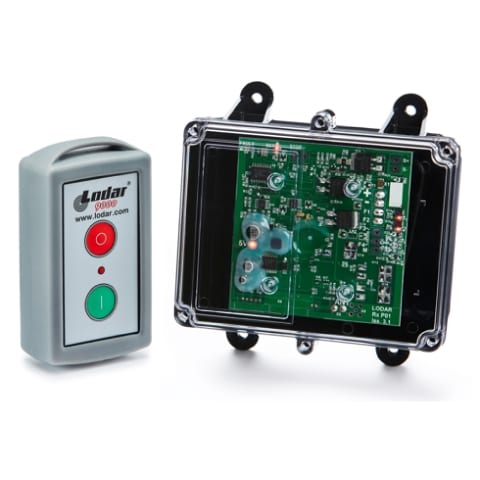

  • Single Function 921 Series Kit

    Lodar System with 1 Function TX
    • Latching and Momentary Outputs
    • 16 Million Codes for Added Safety
    • Overload & Reverse Polarity Protection
    • Potted Receiver for HD Applications
    Model Code Number of functionsMaster outputCurrent ratingRangeTX protectionRX protectionSpec Sheet
    92101-31 Function, 2 ButtonsYes15 AMPS60 MIP55IP67Download

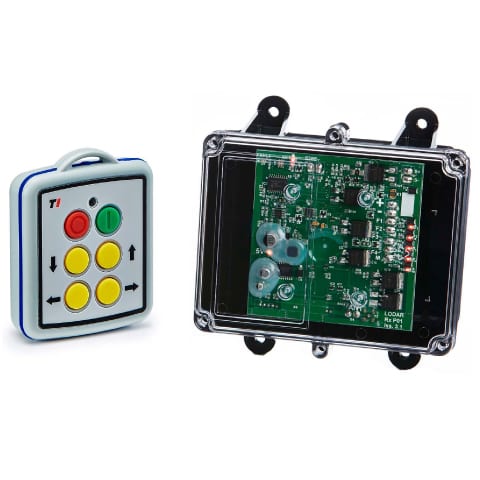

  • Mini 920 Series Kit

    Lodar System with 2-4 Function TX
    • On & Off Control Buttons
    • 16 Million Codes for Added Safety
    • Overload & Reverse Polarity Protection
    • Superior 433 MHZ Frequency
    • Potted Receiver for HD Applications
    Model Code Number of functionsMaster outputCurrent ratingRangeTX protectionRX protectionSpec Sheet
    92000-32 Functions, 2 ButtonsNo15 AMPS60 MIP65IP67Download
    92002-32 Functions, 2 ButtonsYes15 AMPS60 MIP65IP67Download
    92004-34 Functions, 4 ButtonsYes15 AMPS60 MIP65IP67Download

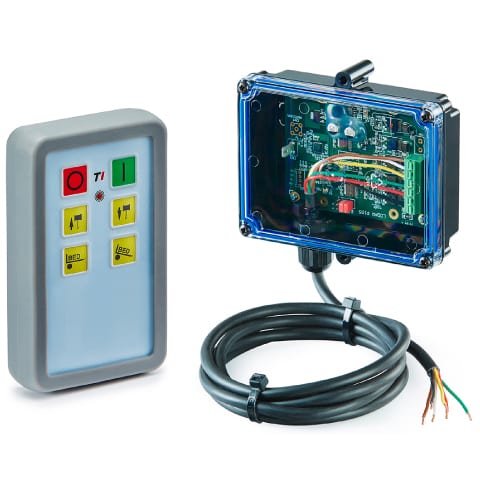

  • Slim 113 Series Kit

    Lodar System with 2-4 Function TX
    • On & Off Control Buttons
    • 16 Million Codes for Added Safety
    • Overload & Reverse Polarity Protection
    • Superior 433 MHZ Frequency
    • Potted Receiver for HD Applications
    Model Code Number of functionsMaster outputCurrent ratingRangeTX protectionRX protectionSpec Sheet
    113000-32 Functions, 2 ButtonsNo15 AMPS60 MIP54IP67Download
    113002-32 Functions, 2 ButtonsYes15 AMPS60 MIP54IP67Download
    113004-34 Functions, 4 ButtonsYes15 AMPS60 MIP54IP67Download

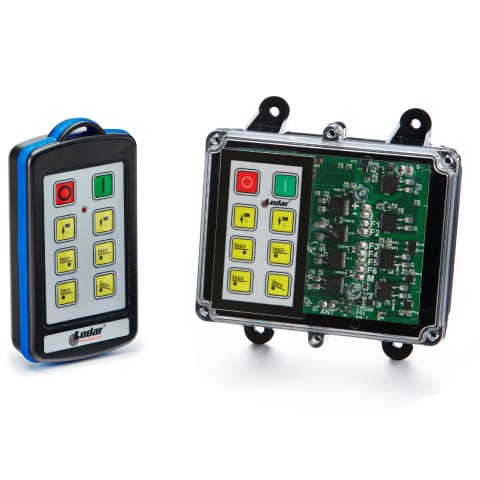

  • Keypad 922K Series Kit

    Lodar System with 2-6 Function TX
    • On & Off Control Buttons
    • Keypad Mounted on Receiver
    • 16 Million Codes for Added Safety
    • Maximum Output - 15AMPS
    • 1 Additional Output (Master)
    • Potted Receiver for HD Applications
    Model Code Number of functionsMaster outputCurrent ratingRangeTX protectionRX protectionSpec Sheet
    92202K-32 Functions, 2 ButtonsYes15 AMPS60 MIP67IP67Download
    92204K-34 Functions, 4 ButtonsYes15 AMPS60 MIP67IP67Download
    92206K-36 Functions, 6 ButtonsYes15 AMPS60 MIP67IP67Download

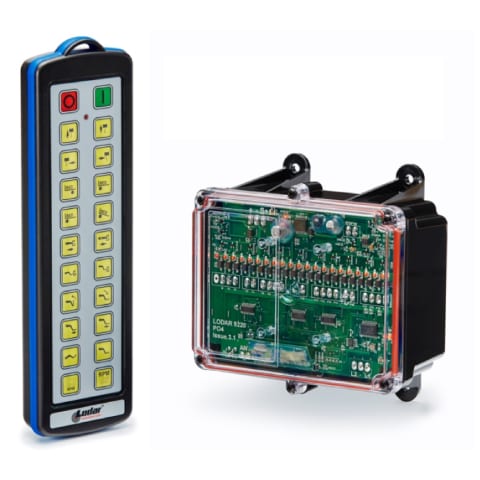

  • IP 922 Series Kit

    Lodar System with 2-40 Function TX
    • On & Off Control Buttons
    • 16 Million Codes for Added Safety
    • Superior 433 MHZ Frequency
    • Maximum Output - 15AMPS
    • 1 Additional Output (Master)
    • Potted Receiver for HD Applications
    Model Code Number of functionsMaster outputCurrent ratingRangeTX protectionRX protectionSpec Sheet
    92202-32 Functions, 2 ButtonsYes15 AMPS60 MIP67IP67Download
    92204-34 Functions, 4 ButtonsYes15 AMPS60 MIP67IP67Download
    92206-36 Functions, 6 ButtonsYes15 AMPS60 MIP67IP67Download
    92210-310 Functions, 10 ButtonsYes15 AMPS60 MIP67IP67Download
    92216-316 Functions, 16 ButtonsYes15 AMPS60 MIP67IP67Download
    92220-320 Functions, 20 ButtonsYes15 AMPS60 MIP67IP67Download
    92330-330 Functions, 20 Buttons (Shift Function)Yes15 AMPS60 MIP67IP67Download
    92336-336 Functions, 20 Buttons (Shift Function)Yes15 AMPS60 MIP67IP67Download
    92340-340 Functions, 20 Buttons (Shift Function)Yes15 AMPS60 MIP67IP67Download

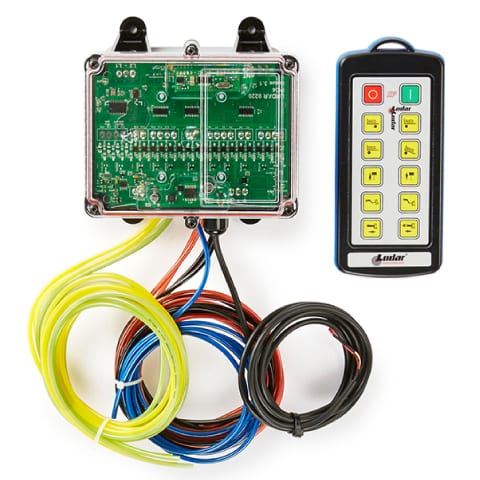

  • Pneumatic 922V Series Kit

    Lodar System with 2-10 Function TX
    • On & Off Control Buttons
    • 16 Million Codes for Added Safety
    • Maximum Output - 15AMPS
    • 1 Additional Output (Master)
    • Potted Receiver for HD Applications
    • SMC Pneumatic Solenoids for Each Function
    Model Code Number of functionsMaster outputVoltageCurrent ratingRangeTX protectionRX protection
    92272-3-**V2 Functions, 2 ButtonsYes12V or 24V15 AMPS60 MIP67IP67
    92274-3-**V4 Functions, 4 ButtonsYes12V or 24V15 AMPS60 MIP67IP67
    92276-3-**V6 Functions, 6 ButtonsYes12V or 24V15 AMPS60 MIP67IP67
    92278-3-**V8 Functions, 8 ButtonsYes12V or 24V15 AMPS60 MIP67IP67
    92280-3-**V10 Functions, 10 ButtonsYes12V or 24V15 AMPS60 MIP67IP67

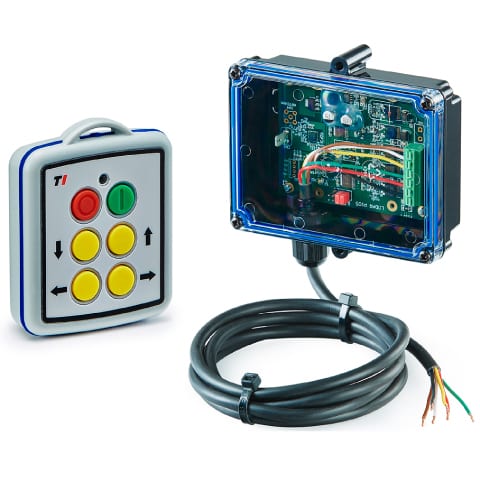

  • Basic 11 Series Kit

    Lodar System with Mini TX
    • On & Off Control Buttons
    • 16 Million Codes for Added Safety
    • Overload & Reverse Polarity Protection
    • Superior 433 MHZ Frequency
    • Mini Receiver Box (Not Potted)
    Model Code Number of functionsMaster outputCurrent ratingRangeTX protectionRX protectionSpec Sheet
    110000-32 Functions, 2 ButtonsNo3 AMPS45 MIP65IP67Download
    110002-32 Functions, 2 ButtonsYes3 AMPS45 MIP65IP67Download
    110004-34 Functions, 4 ButtonsYes3 AMPS45 MIP65IP67Download
