Our Products

Inline Mount Valves

Our range of inline mount valves are sourced from Europe and America and provide the essential requirements of any hydraulic system. Features include electronic proportional control, flow division valves, relief valves, overcentre valves and much more. We even supply a range of cartridge valves from Deltrol America to supplement our well-balanced stock holding.

Electronic Control Boxes
Flow Divider Valves
Relief Valves
Ball Valves
Additional Valves
Overcentre Valves
Check Valves
Cartridge Valves
Selector Valves

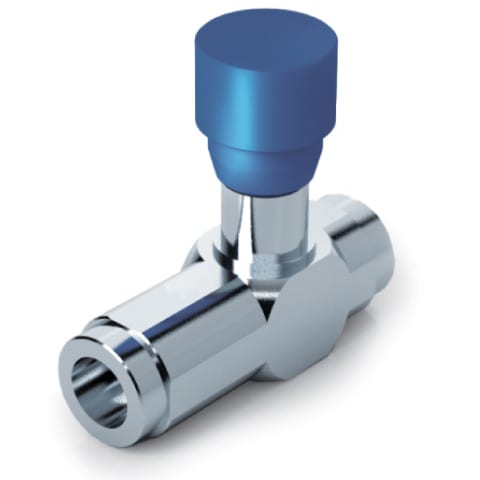

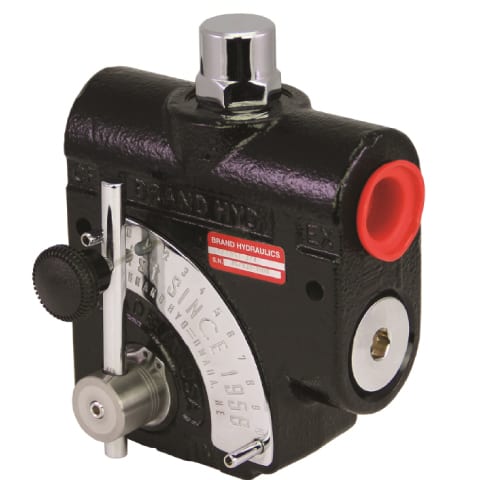

Flow Control Valves

Electronic Control Boxes

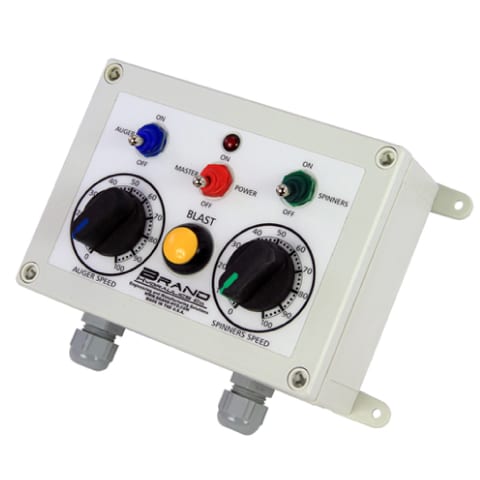

Proportional Control Boxes

Brand Hydraulics Potentiometer & Paddle Control

Pulse Width Modulated
Adjustable Ramps
Adjustable Min/Max
American Made

Model Code	*Control	Input Voltage	Output Voltage	Spec Sheet
EC-12-01L	1 x Potentiometer, 1 x On/Off	12-18V	12V	Download
EC20200	1 x Potentiometer, 1 x On/Off	12-30V	12-30V	Download
EC20100	2 x Potentiometer, 1 x Blast, 3 x On/Off	12-26V	12-26V	Download
EC20400	1 x Single Axis Paddle, 1 x On/Off	12-30V	12-30V	Download

Flow Divider Valves

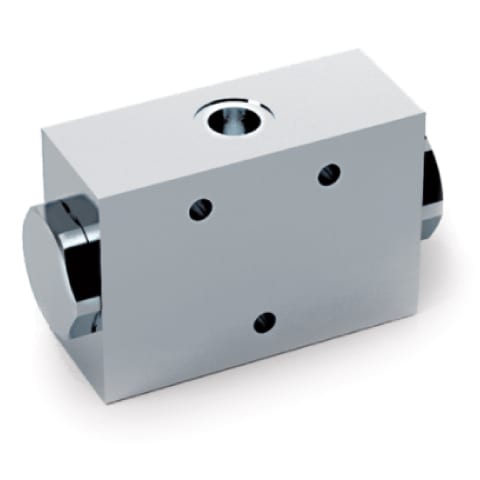

2-Way DFL Divider

OM Fixed Outlets

Lightweight Alloy Construction
Bi-Directional

Model Code	Flow Rate	Porting	Max Pressure	Weight	Spec Sheet
DFL6-10	6.2-12 LPM	3/8" BSPP	210 BAR	0.87 KG	Download

2-Way B100 Flow Divider

Brand Hydraulics Fixed Outlets

Non-Adjustable Outlet Flow
Cast Iron Construction
American Made

Model Code	Flow Rate	Porting	Max Pressure	Weight	Spec Sheet
B100AB-08SAE	7.5-30 LPM	3/4" UNO	207 BAR	3.4 KG	Download
B100AB-10SAE	30-60 LPM	7/8" UNO	207 BAR	3.4 KG	Download
B100AB-12SAE	60-114 LPM	1 1/16" UNO	207 BAR	3.4 KG	Download
B100AB-3/4	60-114 LPM	3/4" NPT	207 BAR	3.4 KG	Download

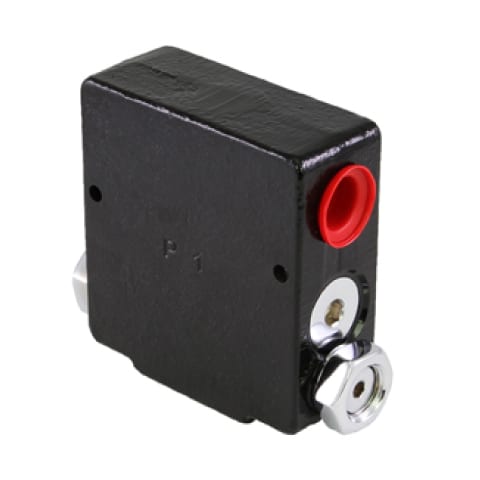

2-Way FP56 Flow Divider

Brand Hydraulics Adjustable Outlets

Adjustable Outlet Flow
Cast Iron Construction
American Made

Model Code	Flow Rate	Porting	Max Pressure	Weight	Spec Sheet
FP56-10SAE	0-114 LPM	7/8" UNO	207 BAR	3.4 KG	Download
FP56-3/4	0-114 LPM	3/4" NPT	207 BAR	3.4 KG	Download

Relief Valves

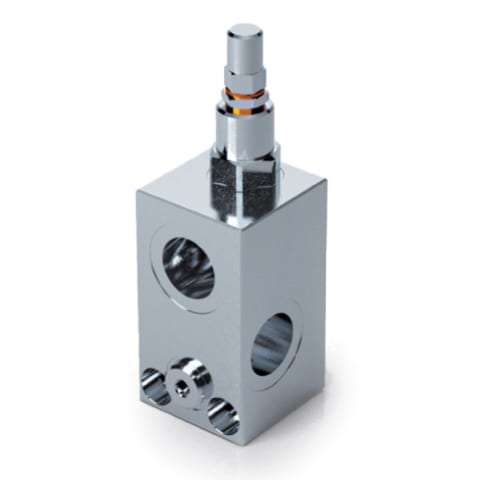

VMP Differential Relief

OM Through Pressure Port

Differential Style
Through P Port
Adjustable
Steel Construction

Model Code	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
VMP38	45 LPM	3/8" BSPP	350 BAR	Through Pressure Port, Differential Style Relief	Download
VMP12	70 LPM	1/2" BSPP	350 BAR	Through Pressure Port, Differential Style Relief	Download
VMP34	90 LPM	3/4" BSPP	400 BAR	Through Pressure Port, Differential Style Relief	Download
VMPP34	120 LPM	1" BSPP	500 BAR	Through Pressure Port, Differential Style Relief	Download
VMPP1	160 LPM	1" BSPP	400 BAR	Through Pressure Port, Differential Style Relief	Download

Ball Valves

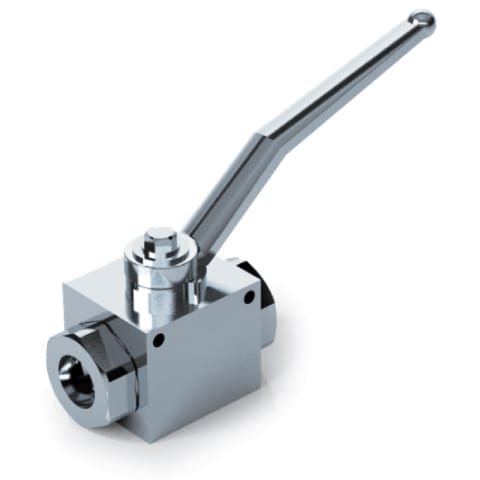

2-Way Lever Control Valves

OM High Pressure Steel

Zero leak
Steel Construction
Inline Design

Model Code	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
RS2VIE1/2"	80 LPM	1/2" BSPP	500 BAR	Inline High-Pressure Ball Valve, Zero Leak	Download
RS2VIE3/4"	120 LPM	3/4" BSPP	400 BAR	Inline High-Pressure Ball Valve, Zero Leak	Download
RS2VIE1"	160 LPM	1" BSPP	350 BAR	Inline High-Pressure Ball Valve, Zero Leak	Download

Additional Valves

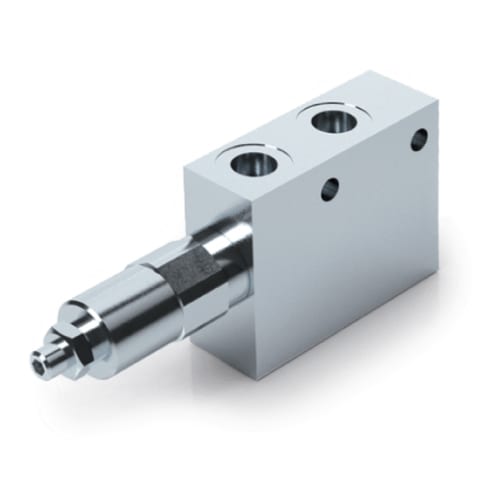

Pressure Reducing Valves

OM VRP Adjustable Alloy

Adjustable Control
Steel Construction

Model Code	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
VRPRL38	30 LPM	3/8" BSPP	350 BAR	Reducing Valve	Download
VRPRL12	30 LPM	1/2" BSPP	350 BAR	Reducing Valve	Download

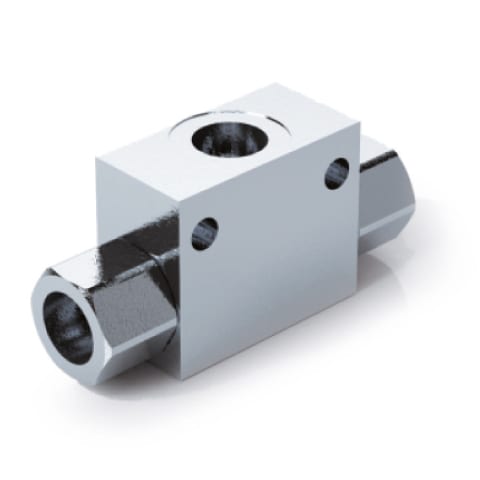

Shuttle Valve

OM VU2 3 Port

Ball Type
Steel Construction

Model Code	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
VU2P1/4	50 LPM	1/4" BSPP	300 BAR	Shuttle Valve	Download

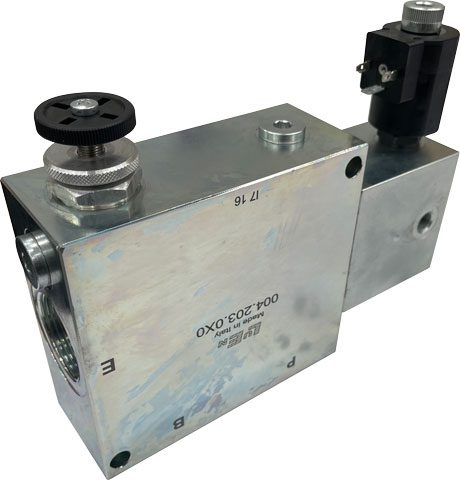

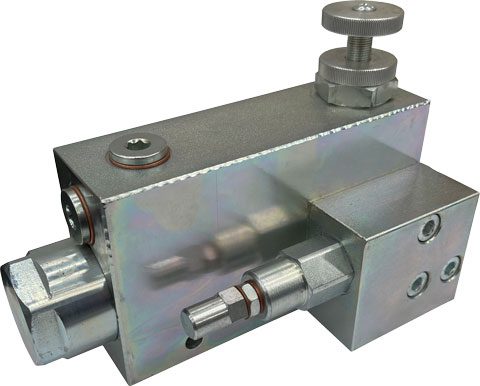

Hammer Valves

Luen Steel 12v or 24v

12v or 24v
Adjustable Relief
Unloading Solenoid
Alloy Construction

Model Code	Part No	Max. Entry Flow	Max. Priority Flow	Porting	Max Pressure	Description	Spec Sheet
VRF-3V-VMP-VMS-34*	004.199.000	250 LPM	150 LPM	3/4" BSPP	350 BAR	Hammer Valve	Download
VRF-3V-VMP-VMS-114*	004.203.000	350 LPM	200 LPM	1 1/4" BSPP	350 BAR	Hammer Valve	Download

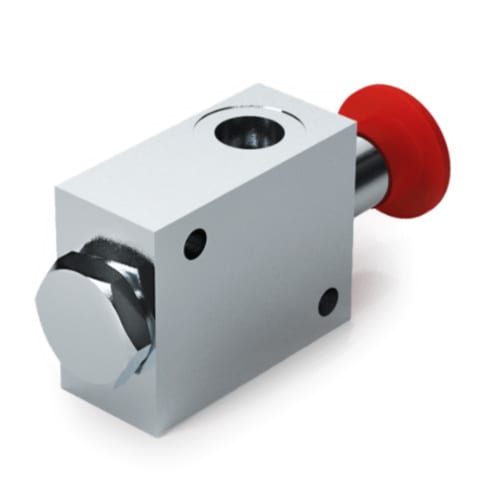

Push Button Valve

OM Emergency Manual On/Off

Normally Closed
Ergonomic On/Off Design
Steel Construction

Model Code	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
VEM12	70 LPM	1/2" BSPP	350 BAR	N.C. On/Off Valve	Download

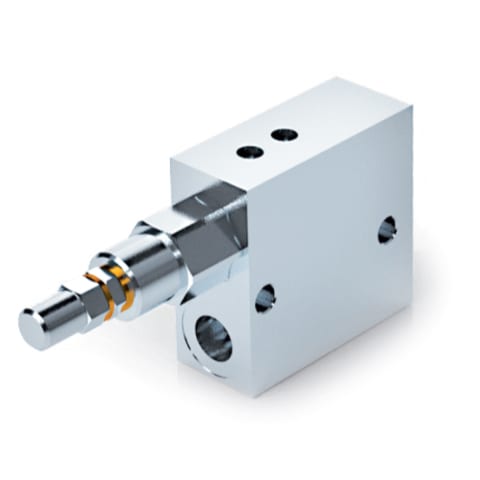

Sequence Valve

OM VS2 Adjustable Alloy

Adjustable Control
Steel Construction

Model Code	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
VS2C12	70 LPM	1/2" BSPP	350 BAR	Sequence Valve	Download

Overcentre Valves

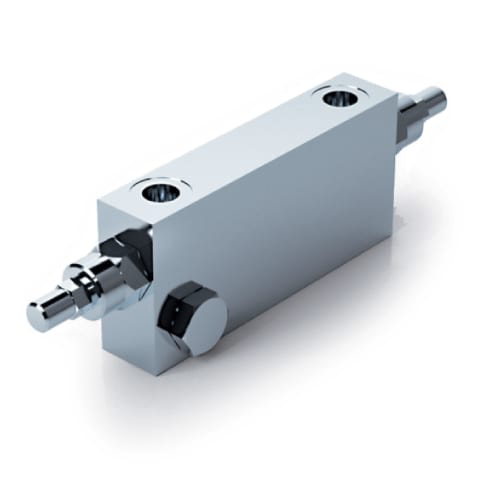

Banjo Overcentre Valves

OM VBCD Adjustable Load Holding

Adjustable Load Holding
Steel Construction
Single & Double

Model Code	Ratio	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
VBCD3/8SE/A/FLV	1:4.5	40 LPM	3/8" BSPP	350 BAR	Banko Style Over Centre Valve	Download
VBCD3/8DE/A/FLV	1:4.5	40 LPM	3/8" BSPP	350 BAR	Banko Style Over Centre Valve	Download

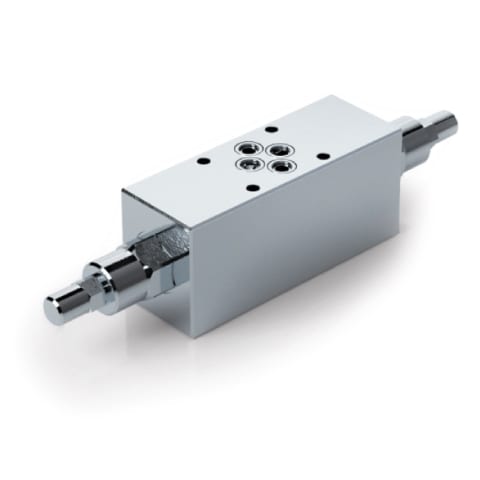

Cetop 3 Overcentre Valves

OM VBCD Adjustable Load Holding

Adjustable Load Holding
Steel Construction
Sandwich Design

Model Code	Ratio	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
VBCDNG6CETOP3	1:4.25	40 LPM	CETOP	350 BAR	Cetop 3 Sandwich	Download

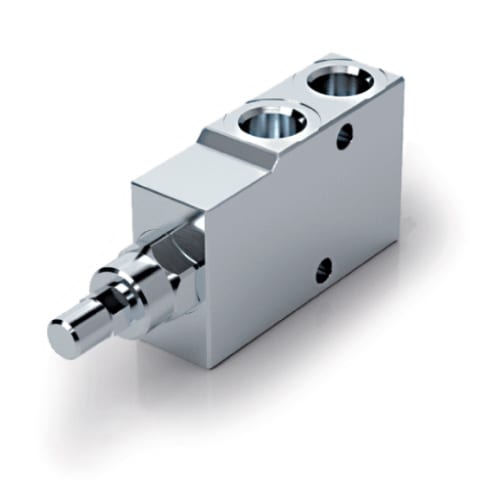

Single Overcentre Valves

OM VBCD Adjustable Load Holding

4 Port
Adjustable Load Holding
Steel Construction

Model Code	Ratio	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
VBCD3/8SE/A	1:4.5	35 LPM	3/8" BSPP	350 BAR	Single Way Over Centre Load Holding Valve	Download
VBCD1/2SE/A	1:4.5	50 LPM	1/2" BSPP	350 BAR	Single Way Over Centre Load Holding Valve	Download
VBCD3/4SE/A	1:5.5	105 LPM	3/4" BSPP	350 BAR	Single Way Over Centre Load Holding Valve	Download

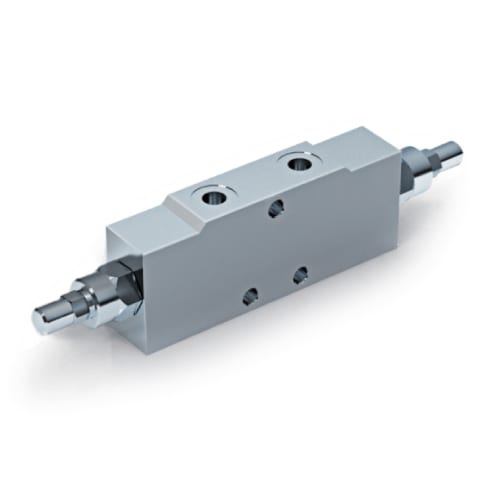

Double Overcentre Valves

OM VBCD Adjustable Load Holding

4 Port
Adjustable Load Holding
Steel Construction

Model Code	Ratio	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
VBCD1/4DE/A	1:4.5	20 LPM	1/4" BSPP	350 BAR	Dual Way Over Centre Load Holding Valve	Download
VBCD3/8DE/A	1:4.5	40 LPM	3/8" BSPP	350 BAR	Dual Way Over Centre Load Holding Valve	Download
VBCD1/2DE/A	1:4.5	60 LPM	1/2" BSPP	350 BAR	Dual Way Over Centre Load Holding Valve	Download
VBCD3/4DE/A	1:4.5	95 LPM	3/4" BSPP	350 BAR	Dual Way Over Centre Load Holding Valve	Download
VBCD1DE/A	1:5.5	160 LPM	1" BSPP	350 BAR	Dual Way Over Centre Load Holding Valve	Download

Check Valves

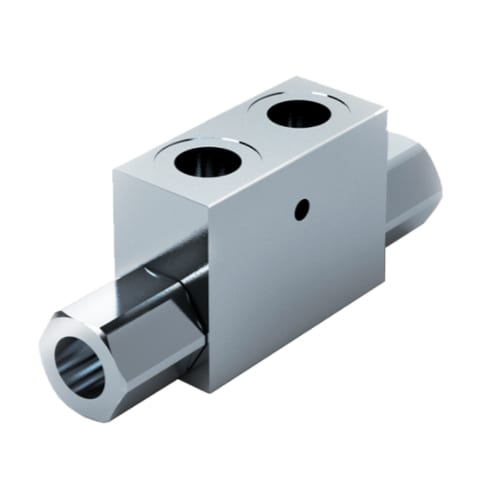

Pilot Operated Checks

OM VBPDE Fixed Steel

Dual Control
90 deg Design
Non-Adjustable
Different Springs Available
Steel Construction

Model Code	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
VBPDE14L	20 LPM	1/4" BSPP	350 BAR	Double Pilot Operated Inline Check Valve	Download
VBPDE38L	45 LPM	3/8" BSPP	350 BAR	Double Pilot Operated Inline Check Valve	Download
VBPDE12L	70 LPM	1/2" BSPP	350 BAR	Double Pilot Operated Inline Check Valve	Download

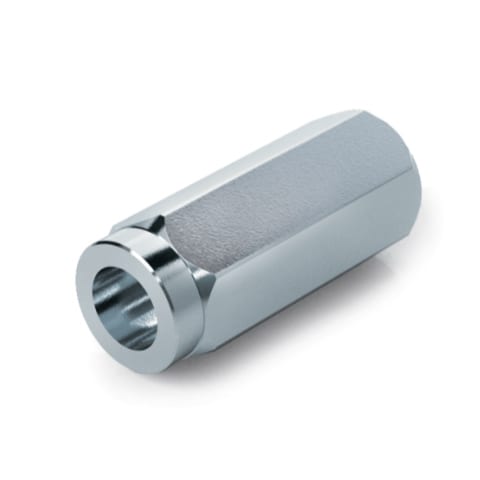

Inline Check

OM VU Fixed Steel

1 BAR Cracking Pressure
Non-Adjustable
Different Springs Available
Steel Construction

Model Code	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
VU1/4	20 LPM	1/4" BSPP	350 BAR	Inline Steel Check Valve - 1 Bar Cracking	Download
VU3/8	45 LPM	3/8" BSPP	350 BAR	Inline Steel Check Valve - 1 Bar Cracking	Download
VU1/2	70 LPM	1/2" BSPP	350 BAR	Inline Steel Check Valve - 1 Bar Cracking	Download
VU3/4	110 LPM	3/4" BSPP	350 BAR	Inline Steel Check Valve - 1 Bar Cracking	Download
VU1/0	160 LPM	1" BSPP	350 BAR	Inline Steel Check Valve - 1 Bar Cracking	Download
VUBA14	20 LPM	1/4" BSPP	350 BAR	Inline Steel Hose Burst Check Valve Female Threaded Ports	Download
VUBA38	50 LPM	3/8" BSPP	350 BAR	Inline Steel Hose Burst Check Valve Female Threaded Ports	Download
VUBA12	80 LPM	1/2" BSPP	350 BAR	Inline Steel Hose Burst Check Valve Female Threaded Ports	Download
VUBA34	140 LPM	3/4" BSPP	350 BAR	Inline Steel Hose Burst Check Valve Female Threaded Ports	Download
VUBA1	180 LPM	1" BSPP	350 BAR	Inline Steel Hose Burst Check Valve Female Threaded Ports	Download

Cartridge Valves

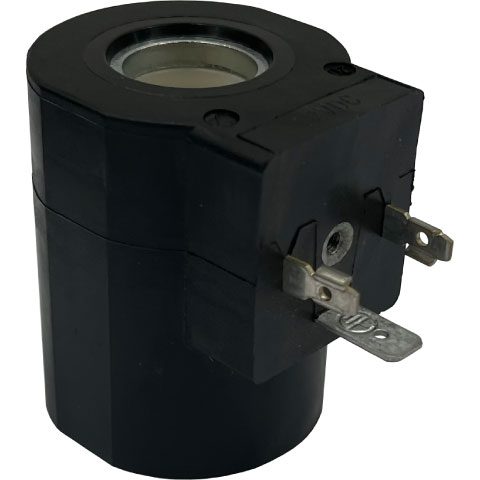

Solenoid Coils

To Suit 080, 100 & 114

B= Spades
HC = Hirschmann
American Made

Model Code	Part No	Voltage	Terminals	Valve Size	Description	Spec Sheet
C38D012DC	-	12 VDC	Hirshmann	114	Coil	Download
C38D024DC	-	24 VDC	Hirshmann	114	Coil	Download
10148-53	10148-53	12 VDC	Double Spade	080	Coil	Download
10149-62	10149-62	24 VDC	Double Spade	080	Coil	Download
10148-72	10148-72	12 VDC	Hirschman	080	Coil	Download
10148-81	10148-81	24 VDC	Hirschman	080	Coil	Download
10148-79	10148-79	240 VAC	Hirschman	080	Coil	Download
10162-91	10162-91	12 VDC	Double Spade	100	Coil	Download
10162-92	10162-92	24 VDC	Double Spade	100	Coil	Download
10162-78	10162-78	12 VDC	Hirschman	100	Coil	Download
10162-79	10162-79	24 VDC	Hirschman	100	Coil	Download
10162-85	10162-85	240 VAC	Hirschman	100	Coil	Download

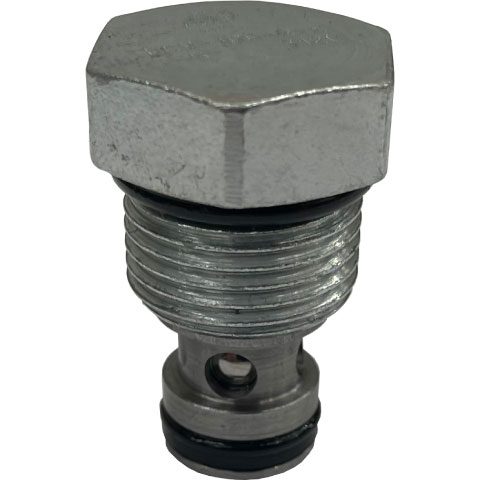

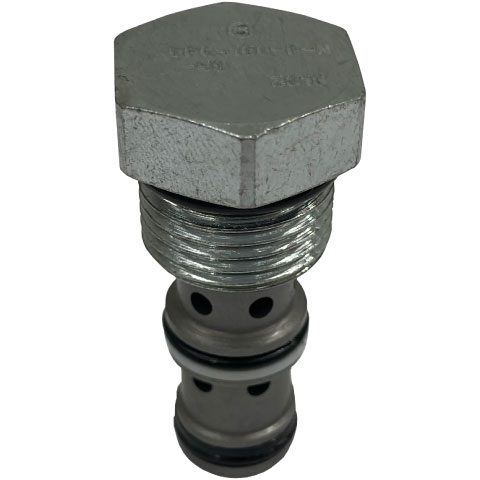

Check Cartridges

Deltrol Various Styles

American Made

Model Code	Part No	Flow Rate	Max Pressure	Cavity	Description	Spec Sheet
DCV-080-PB-N-5	10140-75	18 LPM	207 BAR	08-02	Check Valve - 5 PSI	Download
DCV-100-B-N-5	10179-36	35 LPM	207 BAR	10-2	Check Valve - 5 PSI	Download
ZCP6-N-5	10208-12	20 LPM	207 BAR	Threaded	Check Valve - 5 PSI	Download
DPC-100-P-N-50	10119-70	20LPM	207 BAR	10-2	P.O. Check Valve - 50 PSI	Download

Pressure Control Cartridges

Deltrol Relieving and Reducing Valves

American Made

Model Code	Part No	Flow Rate	Max Pressure	Cavity	Description	Spec Sheet
DRV-080-N-H	10158-13	35 LPM	207 BAR	08-02	Relief - Direct Acting, Adjustable	Download

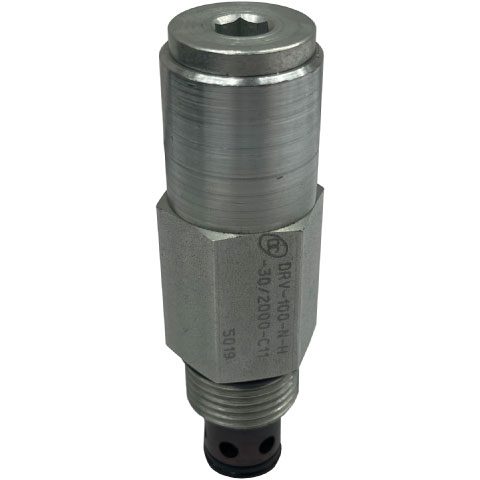

DRV-100-N-H	10184-10	35 LPM	207 BAR	10-2	Relief - Direct Acting, Adjustable	Download
DPR-100-N-S-9	10129-56	5/15 LPM	207 BAR	10-3	Pressure Reducing & Relieving	Download

Additional Cartridges

Deltrol Hand Pump, Mech Operation & Flow Control Valves

American Made

Model Code	Part No	Flow Rate	Max Pressure	Cavity	Porting	Description	Spec Sheet
DHP100-N-5	10177-09	8 CC/STROKE	207 BAR	10-2		Hand Pump	Download
DMR2-080-N	10179-86	18 LPM	207 BAR	08-02		Mech. Op. 2 Way, 2 Pos. N.C.	Download
PC4-21-1.0		4 LPM	207 BAR		1/4" NPT	Fixed P.C. Hex Body	Download

Cavity Plugs

To Suit 080 & 100

American Made

Model Code	Part No	Cavity	Description
DCP-080-2	10174-29	080-2	Cavity Plug
DCP-080-3	10174-30	080-3	Cavity Plug
DCP-100-2	10174-32	100-2	Cavity Plug
DCP-100-3	10174-33	100-3	Cavity Plug

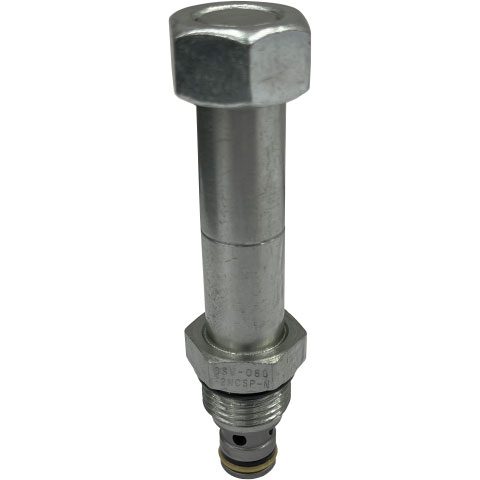

Size 080 Solenoid Cartridges

Deltrol Electrically Operated Valves

Includes Locking Nut for Coil
American Made

Model Code	Part No	Flow Rate	Max Pressure	Cavity	Description	Spec Sheet
DSV-080-2NCP-N	10175-45	18 LPM	275 BAR	08-02	2 Way, 2 Pos. N.C.	Download
DSV-080-2NCSP-N	10209-89	18 LPM	207 BAR	08-02	Bi-Dir, 2 Way, 2 Pos. N.C.	Download
DSV-080-34C-N	10172-64	10 LPM	207 BAR	08-04	4 Way, 3 Pos. N.C.	Download
DSV2-080-3B-N	10181-08	15 LPM	207 BAR	08-03	3 Way, 2 Pos. Selector	Download
DSV2-080-2NOP-N	10152-80	15 LPM	207 BAR	08-02	2 Way, 2 Pos. N.O.	Download

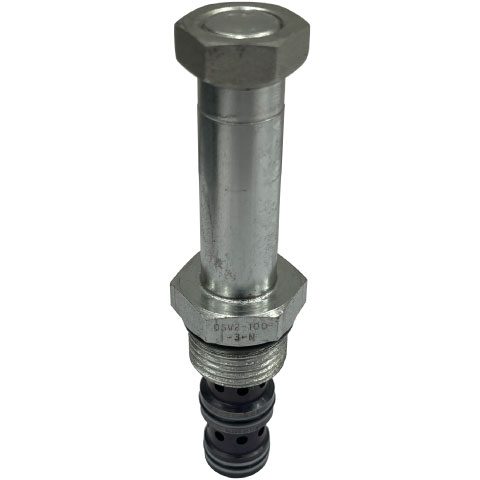

Size 100 Solenoid Cartridges

Deltrol Electrically Operated Valves

Includes Locking Nut for Coil
American Made

Model Code	Part No	Flow Rate	Max Pressure	Cavity	Description	Spec Sheet
DSV2-100-2NCP-N	10186-24	15 LPM	207 BAR	10-2	2 Way, 2 Pos. N.C.	Download
DSV2-100-2NOP-N	10148-98	15 LPM	207 BAR	10-2	2 Way, 2 Pos. N.O.	Download
DSV2-100-3B-N	10186-30	20 LPM	207 BAR	10-3	3 Way, 2 Pos. Selector	Download
DSV2-100-4CO-N	10147-35	18 LPM	207 BAR	10-4	4 Way, 2 Pos. Cross-Over	Download

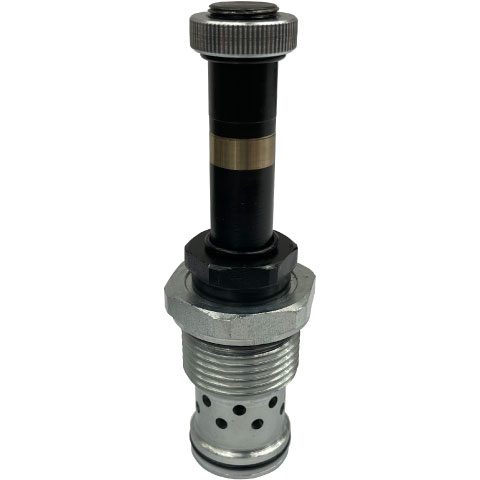

Size 114 Solenoid Cartridges

Luen Normally Open or Closed Valves

Alloy Manifold
High Flow Design
Hirshmann Coil Connection
Normally Open/Closed Option

Model Code	Part No	Coil Size	Flow Rate	Max Pressure	Cavity	Description	Spec Sheet
VEP-NC-150-114N-100GAS	005.561.000	C38	150 LPM	300 BAR	CE-114-N	Normally Closed	Download
VEP-NA-150-114N-100GAS	005.560.000	C38	150 LPM	300 BAR	CE-114-N	Normally Open	Download

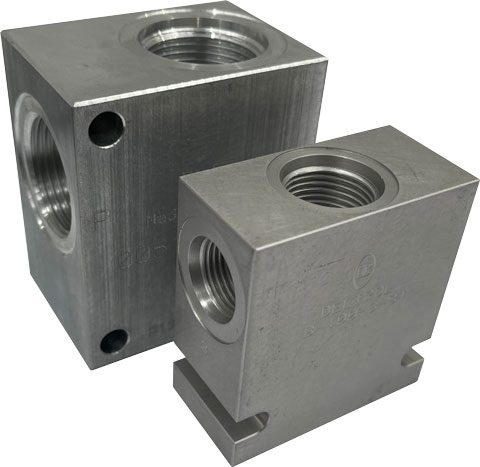

Manifolds

To Suit 080, 100 & 114

Deltrol & Luen

Model Code	Part No	Porting	Max Pressure	Cavity	Description	Spec Sheet
C-100GAS-114N-T	005.533.001	1" BSPP			2 Way Body	Download
B-080-2-6T	10138-47	9/16" UNO	207 BAR	08-02	2 Way Body
B-080-3-6T	10134-93	9/16" UNO	207 BAR	08-03	3 Way Body
B-100-2-8T	10138-51	3/4" UNO	207 BAR	10-2	2 Way Body
B-100-3-8-T	10134-99	3/4" UNO	207 BAR	10-3	3 Way Body

Selector Valves

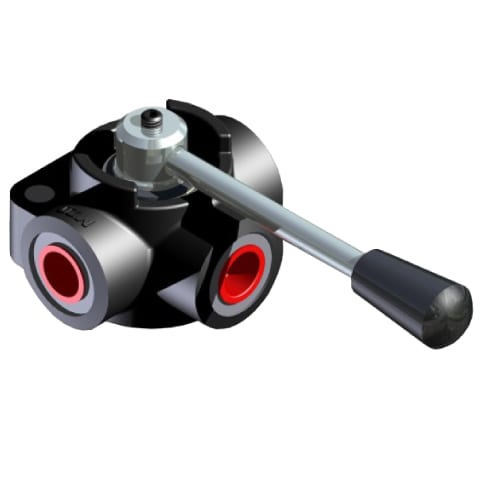

3-Way Rotary Valves

HV Hydraulics D3V Selector

Open Centre as Standard
Closed Centre Upon Request
Cast Ion Contruction

Model Code	Flow Rate	Pressure	Weight	Description	Spec Sheet
D3V-3/8"	60 LPM	315 BAR	.75 KG	3/8" BSPP	Download
D3V-1/2"	90 LPM	280 BAR	1.20 KG	1/2" BSPP	Download
D3V-3/4"	120 LPM	250 BAR	1.75 KG	3/4" BSPP	Download
D3V-1"	180 LPM	250 BAR	2.30 KG	1" BSPP	Download

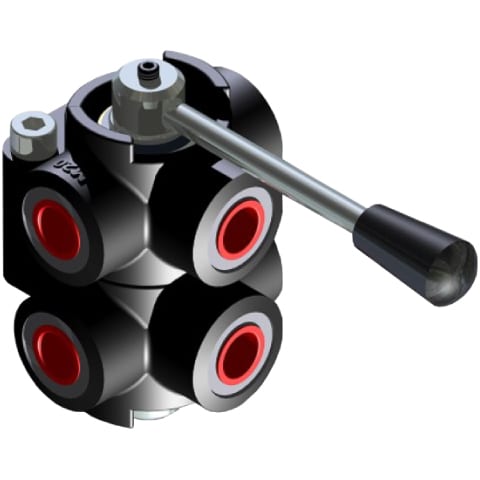

6-Way Rotary Valves

HV Hydraulics D6V Selector

Open Centre as Standard
Closed Centre Upon Request
Cast Ion Contruction

Model Code	Flow Rate	Pressure	Weight	Description	Spec Sheet
D6V-3/8"	60 LPM	315 BAR	1.50 KG	3/8" BSPP	Download
D6V-1/2"	90 LPM	280 BAR	2.50 KG	1/2" BSPP	Download
D6V-3/4"	120 LPM	220 BAR	3.50 KG	3/4" BSPP	Download

6-Way Push/Pull Valves

Brand Hydraulics DS Selector

Open Crossover
Cast Iron Construction
American made

Model Code	*Control	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
DS08-BK	Knob Push/Pull	38 LPM	3/4" UNO	248 BAR	Manual 6 Port Selector Valve: Open Cross Over	Download
DS10-BK	Knob Push/Pull	68 LPM	7/8" UNO	248 BAR	Manual 6 Port Selector Valve: Open Cross Over	Download
DS12-BK	Knob Push/Pull	98 LPM	1 1/16" UNO	248 BAR	Manual 6 Port Selector Valve: Open Cross Over	Download

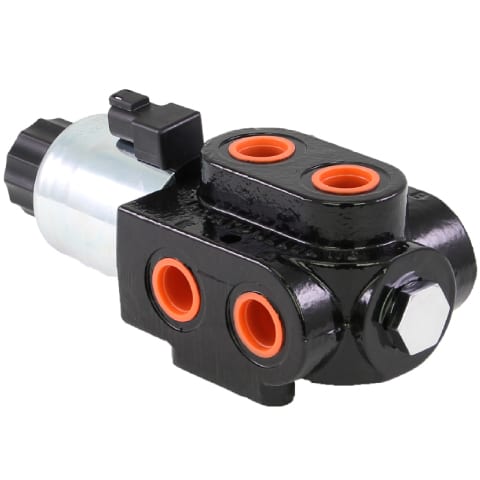

6-Way Electric Valves

Brand Hydraulics DS Selector

Open Crossover
Cast Iron Construction
American made

Model Code	Flow Rate	Porting	Max Pressure	Voltage	Description	Spec Sheet
DS08BE	38 LPM	3/4" UNO	248 BAR	12V or 24V	Electric 6 Port Selector Valve: Open Cross Over	Download
DS10BE	68 LPM	7/8" UNO	248 BAR	12V or 24V	Electric 6 Port Selector Valve: Open Cross Over	Download
DS12BE	98 LPM	1 1/16" UNO	248 BAR	12V or 24V	Electric 6 Port Selector Valve: Open Cross Over	Download

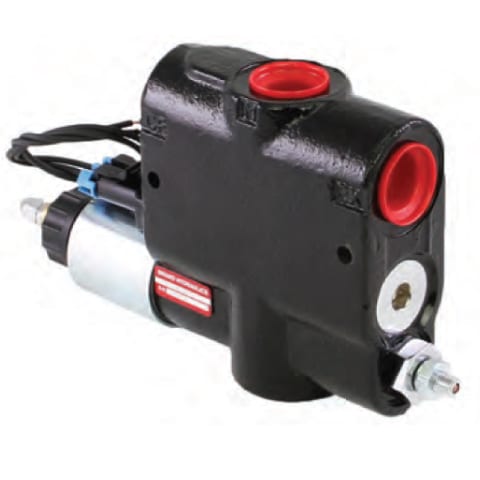

Flow Control Valves

3 Port Priority

Brand Hydraulics Electronic Proportional

Optional Relief
2 & 3 Port Options
Includes Manual Override
Deutsch Connection
Cast Iron Construction
American made

Model Code	Flow Rate	Porting	Max Pressure	Weight	Voltage	Spec Sheet	Options
EFC12-05-*	0-19 LPM	1 1/16" UNO	207 BAR	4 KG	12V or 24V	Download	View options
EFC12-10-*	0-38 LPM	1 1/16" UNO	207 BAR	4 KG	12V or 24V	Download	View options
EFC12-15-*	0-57 LPM	1 1/16" UNO	207 BAR	4 KG	12V or 24V	Download	View options
EFC12-20-*	0-75 LPM	1 1/16" UNO	207 BAR	4 KG	12V or 24V	Download	View options
EFC12-25-*	0-95 LPM	1 1/16" UNO	207 BAR	4 KG	12V or 24V	Download	View options
EFC12-30-*	0-114 LPM	1 1/16" UNO	207 BAR	4 KG	12V or 24V	Download	View options

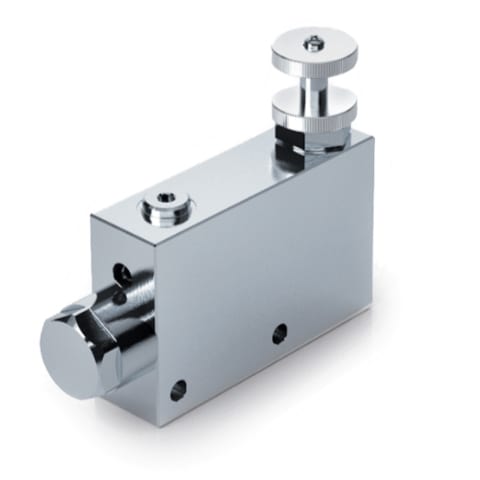

3 Port Priority

OM Steel Valve with Knob

Pressure Compensated
Adjustable Control
Usable Bypass
Steel Construction

Model Code	Construction	Max. Entry Flow	Max. Priority Flow	Porting	Max Pressure	Description	Spec Sheet
VPR3-38	Steel	60 LPM	50 LPM	3/8" BSPP	350 BAR	Pressure Compensated 3 Port Priority Valve	Download
VPR3-12	Steel	80 LPM	60 LPM	1/2" BSPP	350 BAR	Pressure Compensated 3 Port Priority Valve	Download
VPR3-34	Steel	120 LPM	100 LPM	3/4" BSPP	350 BAR	Pressure Compensated 3 Port Priority Valve	Download
VPR3-100	Steel	200 LPM	170 LPM	1" BSPP	350 BAR	Pressure Compensated 3 Port Priority Valve	Download

2-3 Port Priority

Brand Hydraulics Lever Operated

Multiple Configurations
Lever Operated
Cast Iron Construction
American made

Model Code	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
FCR51-12SS	0-61 LPM	1/2" NPT	210 BAR	Priority Flow Control, with Relief Valve	Download
FCR51-34	0-114 LPM	3/4" NPT	210 BAR	Priority Flow Control, with Relief Valve	Download
FCR51-8SAE	0-61 LPM	3/4" UNO	210 BAR	Priority Flow Control, with Relief Valve	Download
FCR51-12SAE	0-114 LPM	1 1/16" UNO	210 BAR	Priority Flow Control, with Relief Valve	Download
FC51-16SAE	0-190 LPM	1.5/16" UNO	210 BAR	Priority Flow Control, High Flow	Download
FC51-24SAE	0-340 LPM	1.7/8" UNO	210 BAR	Priority Flow Control, High Flow	Download
FC55-10SAE	0-61 LPM	7/8" UNO	210 BAR	Priority Flow Control, with Free Reverse Flow	Download
FC55-12SAE	0-114 LPM	1 1/16" UNO	210 BAR	Priority Flow Control, with Free Reverse Flow	Download

3 Port Priority inc. Relief

OM Steel Valve with Knob

Pressure Compensated
Adjustable Control
Usable Bypass
Adjustable Relief
Steel Construction

Model Code	Construction	Max. Entry Flow	Max. Priority Flow	Porting	Max Pressure	Description	Spec Sheet
VPR3-VMP-38	Steel	60 LPM	50 LPM	3/8" BSPP	350 BAR	Pressure Compensated 3 Port Priority Valve, with Adjustable Relief	Download
VPR3-VMP-12	Steel	80 LPM	60 LPM	1/2" BSPP	350 BAR	Pressure Compensated 3 Port Priority Valve, with Adjustable Relief	Download
VPR3-VMP-34	Steel	120 LPM	100 LPM	3/4" BSPP	350 BAR	Pressure Compensated 3 Port Priority Valve, with Adjustable Relief	Download
VPR3-VMP-100	Steel	200 LPM	170 LPM	1" BSPP	350 BAR	Pressure Compensated 3 Port Priority Valve, with Adjustable Relief	Download

2 Port Needle

OM Inline Valve with Knob

Inline Design
Adjustable Control
Steel Construction

Model Code	Flow Rate	Porting	Max Pressure	Description	Spec Sheet
VRFB-90-14G	25 LPM	1/4" BSPP	350 BAR	Needle Valve with Knob	Download
VRFB-90-38G	40 LPM	3/8" BSPP	350 BAR	Needle Valve with Knob	Download
VRFB-90-12G	50 LPM	1/2" BSPP	350 BAR	Needle Valve with Knob	Download
VRFU-90-14G	25 LPM	1/4" BSPP	350 BAR	Throttle & Check with Knob	Download
VRFU-90-38G	40 LPM	3/8" BSPP	350 BAR	Throttle & Check with Knob	Download
VRFU-90-12G	50 LPM	1/2" BSPP	350 BAR	Throttle & Check with Knob	Download
VRFU-90-34G	80 LPM	3/4" BSPP	320 BAR	Throttle & Check with Knob	Download
VRFU-90-100G	110 LPM	1" BSPP	300 BAR	Throttle & Check with Knob	Download
VRFU-90C-14G	15 LPM	1/4" BSPP	300 BAR	Pressure Comp. Flow & Check	Download
VRFU-90C-38G	17 LPM	3/8" BSPP	300 BAR	Pressure Comp. Flow & Check	Download
VRFU-90C-12G	30 LPM	1/2" BSPP	250 BAR	Pressure Comp. Flow & Check	Download
