Our Products

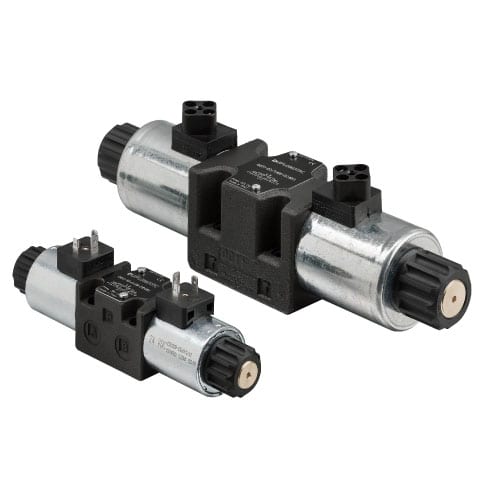

Industrial Valves
Cetop directional control valves are characterised by a simple modular construction. Our range is supplied by one of Europe’s best, Duplomatic Oleodinamica. Our range includes variants of Cetop 3 including low flow, high flow and proportional valves. Cetop 5 is also locally stocked and many other value types and manifolds.

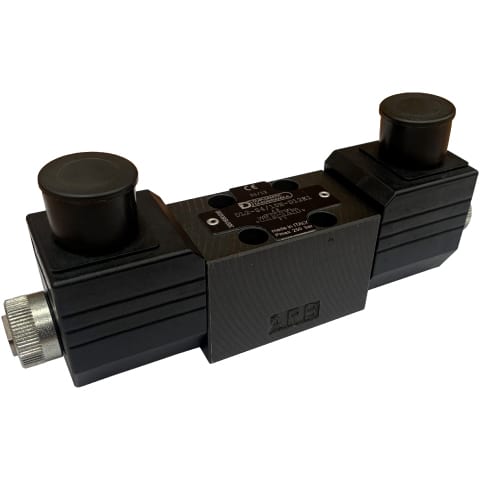

Cetop 2 Directional Valves
-
Low Flow DS2 Valves
Duplomatic Solenoid Operated- Includes Electrical Connectors
- Includes Metric Mounting Bolts
- Compact Cetop 2 Interface
- Multiple Voltage Options
Model Code Max Flow Max Pressure Max Tank Pressure *** Voltage Options Description Spec Sheet DL2-TA/10N-***K1 20 LPM 250 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Single Solenoid - Spring off set Download DL2-S1/10N-***K1 20 LPM 250 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - All Ports Blocked Download DL2-S2/10N-***K1 20 LPM 250 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - All Ports Open Download DL2-S3/10N-***K1 20 LPM 250 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - A & B open to T Download DL2-S4/10N-***K1 15 LPM 250 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - A & B Blocked, P to T Download
Cetop 3 Directional Valves
-

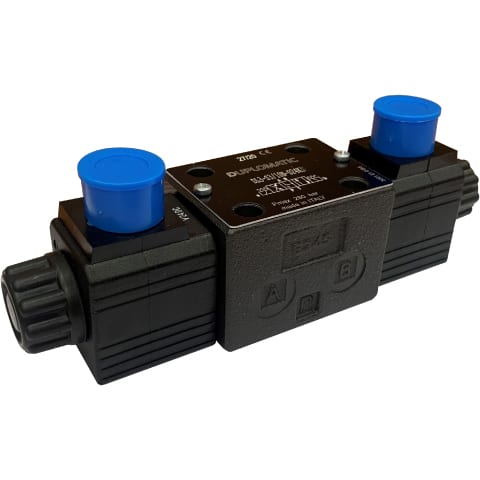

Low Flow DL3 Valves
Duplomatic Solenoid Operated- Includes Electrical Connectors
- Includes Metric Mounting Bolts
- Multiple Voltage Options
- DIN & Deutsch Connectors
Model Code Max Flow Max Pressure Max Tank Pressure *** Voltage Options Description Spec Sheet DL3-TA/10N-***K1 50 LPM 280 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Single Solenoid - Spring off set Download DL3-S1/10N-***K1 50 LPM 280 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - All Ports Blocked Download DL3-S2/10N-***K1 50 LPM 280 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - All Ports Open Download DL3-S3/10N-***K1 50 LPM 280 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - A & B open to T Download DL3-S4/10N-***K1 35 LPM 280 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - A & B Blocked, P to T Download DL3-RK/10N-***K1 50 LPM 280 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - Detent, 2 Positions Download -

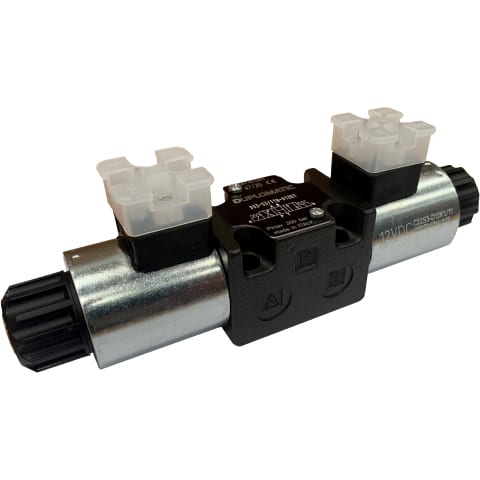

High Flow DS3 Valves
Duplomatic Solenoid Operated- Includes Electrical Connectors
- Includes Metric Mounting Bolts
- Multiple Voltage Options
- DIN & Deutsch Connectors
Model Code Max Flow Max Pressure Max Tank Pressure *** Voltage Options Description Spec Sheet DS3-TA/10N-***K1 100 LPM 350 BAR 210 BAR 12 VDC, 24 VDC, 230/240VAC Single Solenoid - Spring off set Download DS3-S1/10N-***K1 100 LPM 350 BAR 210 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - All Ports Blocked Download DS3-S2/10N-***K1 100 LPM 350 BAR 210 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - All Ports Open Download DS3-S3/10N-***K1 100 LPM 350 BAR 210 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - A & B open to T Download DS3-S4/10N-***K1 100 LPM 350 BAR 210 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - A & B Blocked, P to T Download -

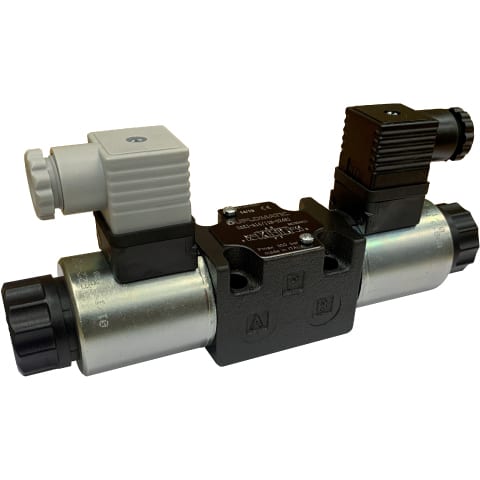

Proportional DSE3 Valves
Duplomatic Solenoid Operated- Includes Electrical Connectors
- Includes Metric Mounting Bolts
- Multiple Voltage Options
- DIN & Deutsch Connectors
- Different Controlled Flow Options
Model Code Max Flow Max Pressure *** Voltage Options Description Spec Sheet DSE3-C/A**/11N-***K1 40 LPM 350 BAR 12 VDC, 24 VDC Proportional Cetop 3 Valve Download QDE3-40/11N-***WK7/CK/W7 40 LPM 250 BAR 12 VDC, 24 VDC Proportional Cetop with Flow Control & Compensation Download QDE5-80/11N-***K7/CK 80 LPM 250 BAR 12 VDC, 24 VDC Proportional Cetop with Flow Control & Compensation Download
Cetop 5 Directional Valves
-

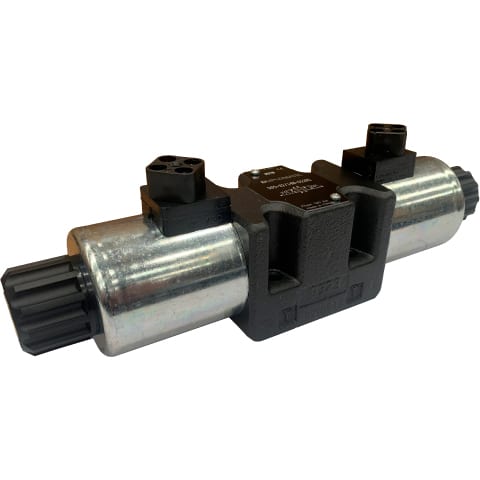

High Flow DS5 Valves
Duplomatic Solenoid Operated- Includes Electrical Connectors
- Includes Metric Mounting Bolts
- Multiple Voltage Options
- DIN & Deutsch Connectors
Model Code Max Flow Max Pressure Max Tank Pressure *** Voltage Options Description Spec Sheet DS5-TA/12N-***K1 150 LPM 320 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Single Solenoid - Spring off set Download DS5-S1/12N-***K1 150 LPM 320 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - All Ports Blocked Download DS5-S2/12N-***K1 150 LPM 320 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - All Ports Open Download DS5-S3/12N-***K1 150 LPM 320 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - A & B open to T Download DS5-S4/12N-***K1 125 LPM 320 BAR 160 BAR 12 VDC, 24 VDC, 230/240VAC Double Solenoid - A & B Blocked, P to T Download

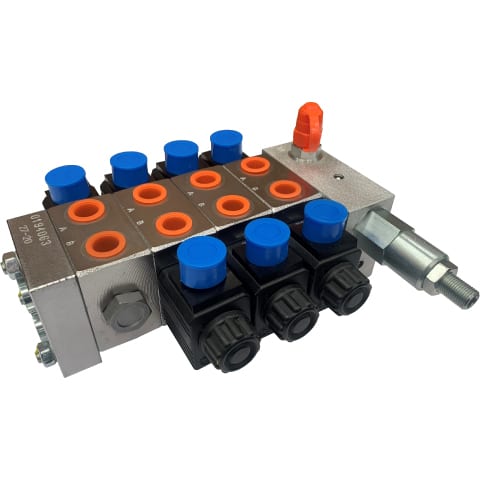

Bankable Directional Valves
-
Low Flow BDL Valves
Duplomatic Solenoid Operated- Includes Electrical Connectors
- Multiple Voltage Options
- Multiple Voltage Options
- DIN & Deutsch Connectors
Model Code Section Max Flow Max Pressure Ports *** Voltage Options Description Spec Sheet BD3-B12S-P10/N Inlet 40 LPM 280 BAR 1/2" BSPP Without Valves Download BD3-B12S-P210/10N Inlet 40 LPM 280 BAR 1/2" BSPP Relief Valve Download BD3-B12S-PK210/10N***K Inlet 40 LPM 280 BAR 1/2" BSPP 12 VDC, 24 VDC, 230/240VAC Relief Valve & Unloader Download BDL2-B38-S1/10N-***K1 Work 40 LPM 280 BAR 3/8" BSPP 12 VDC, 24 VDC, 230/240VAC Closed Ports in Center Download BDL2-B38-S2/10N-***K1 Work 40 LPM 280 BAR 3/8" BSPP 12 VDC, 24 VDC, 230/240VAC All Ports Open in Center Download BDL2-B38-S3/10N-***K1 Work 40 LPM 280 BAR 3/8" BSPP 12 VDC, 24 VDC, 230/240VAC A & B to Tank in Center Download BDL2-B38-S4/10N-***K1 Work 40 LPM 280 BAR 3/8" BSPP 12 VDC, 24 VDC, 230/240VAC P to T in Center Download BD3-B38S-R03/10 Outlet 40 LPM 280 BAR 3/8" BSPP P & T Outlet Ports Download
Cetop Modular Valves
-

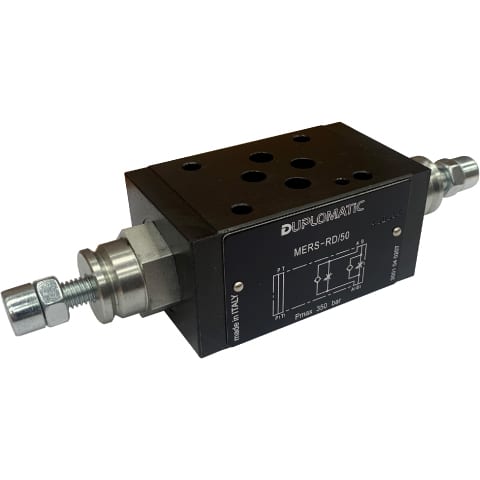

Relief Valves
Duplomatic Cetop 2, 3 & 5- Sandwich Design
- Cast Iron Construction
-

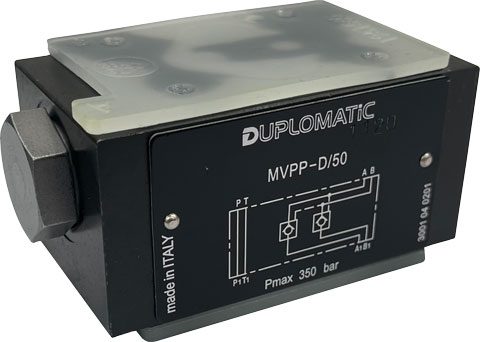

Pilot Op Check Valves
Duplomatic Cetop 2, 3 & 5- Sandwich Design
- Cast Iron Construction
-
Flow Control Valves
Duplomatic Cetop 2, 3 & 5- Sandwich Design
- Cast Iron Construction
- Meter In & Out
-
Miscellaneous Valves
Duplomatic Speed Control, Unloading and Relief Valves- Varied Styled Valves
- Refer Data Sheets for Info
Model Code Max Flow Max Pressure Mounting Description Spec Sheet RLM3-AT10 50 LPM 320 BAR Cetop 3 Electric 2 Speed Control Download MRQA-5/2/M1 40 LPM 320 BAR Cetop 3 Accumulator Unloading Valve Download CD1-W5/M1 3 LPM 350 BAR Flange - 1/4" Direct Relief - Remote Piloting, Panel Mnt Download RQ5-W5/M 250 LPM 350 BAR Inline - 3/4", 1" Pilot Op. Relief - Ventable Download
Subplates & Manifolds
-

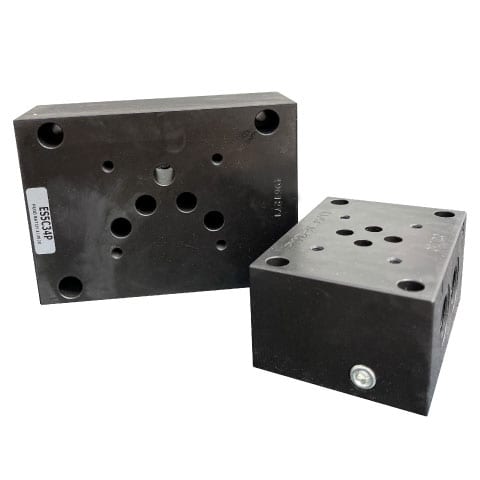

Cast Iron Subplates
Duplomatic Cetop 2, 3 & 5- Cetop 2, 3 & 5
- Steel Contruction
Model Code Max Pressure Weight Ports Description Spec Sheet PE-DL2 250 BAR 0.3 KG Blanking Plate - All Ports Download PM2-SL-1 250 BAR 0.4 KG 1/4" & 3/8" BSPP Ports Side & Rear PE-MD1 350 BAR 0.7 KG Blanking Plate - All Ports Download PMMD-AI3G 350 BAR 1.9 KG 3/8" BSPP All Ports Rear Download PMMD-AL3G 350 BAR 2.2 KG 3/8" BSPP All Ports Side Download PE-D4-M 320 BAR 1.5 KG Blanking Plate - All Ports Download PMD4-AI4G 350 BAR 2.2 KG 1/2" BSPP All Ports Rear Download PMD4-AL4G 350 BAR 4.2 KG 3/4" BSPP All Ports Side Download -

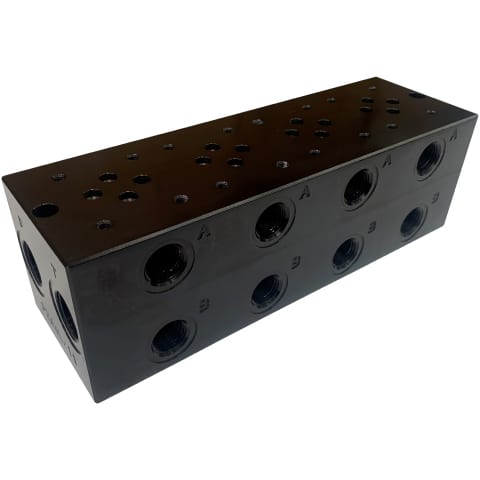

P2A Parallel Manifolds
Duplomatic Black Anodised- Alloy Contruction
- Black Anodised
- P&T Ports on Both Ends
Model Code Max Flow Max Pressure Ports Description Spec Sheet P2A2L-11 50 LPM 210 BAR 1/2" BSPP P & T / 3/8" BSPP A & B Parallel Cetop 3 Manifold, Side Ports Download P2A3L-11 50 LPM 210 BAR 1/2" BSPP P & T / 3/8" BSPP A & B Parallel Cetop 3 Manifold, Side Ports Download P2A4L-11 50 LPM 210 BAR 1/2" BSPP P & T / 3/8" BSPP A & B Parallel Cetop 3 Manifold, Side Ports Download P2A5L-11 50 LPM 210 BAR 1/2" BSPP P & T / 3/8" BSPP A & B Parallel Cetop 3 Manifold, Side Ports Download P2A6L-11 50 LPM 210 BAR 1/2" BSPP P & T / 3/8" BSPP A & B Parallel Cetop 3 Manifold, Side Ports Download P2A7L-11 50 LPM 210 BAR 1/2" BSPP P & T / 3/8" BSPP A & B Parallel Cetop 3 Manifold, Side Ports Download P2A8L-11 50 LPM 210 BAR 1/2" BSPP P & T / 3/8" BSPP A & B Parallel Cetop 3 Manifold, Side Ports Download
Accessories
-

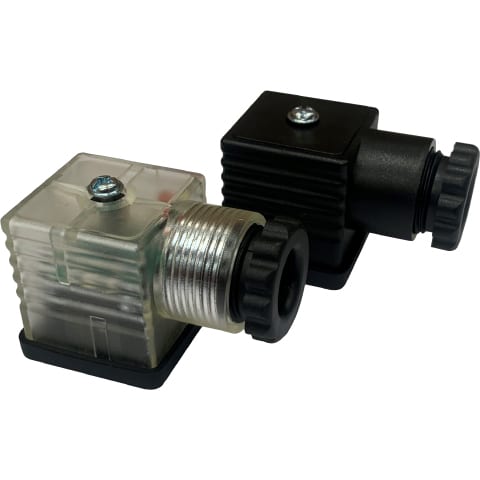

Electrical Connectors
Duplomatic Hirschmann DIN 43650- IP65 Protection Rating
- Sealed M3 Bolt
- 90deg Gland Orientation
Model Code Description ECD/B/10 Rectified Connector for 240 Volt AC Input ECA/A/10 Hirschmann Connector (Grey) ECA/B/10 Hirschmann Connector (Black) ECB1/N/10 LED Hirschmann Connector
