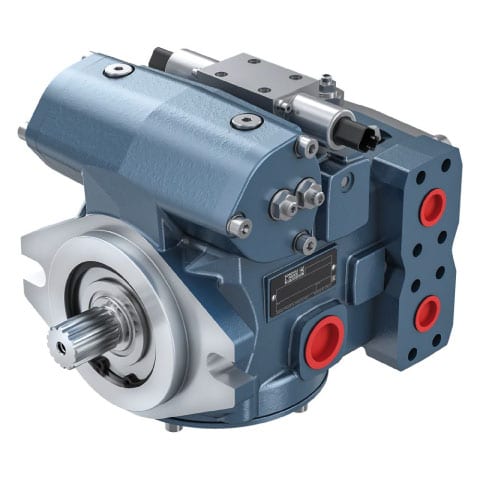

Closed Loop Piston Pumps
Closed circuit piston pumps are available with a variety of control options: direct manual, servo-assisted manual, remote hydraulic, remote hydraulic with feedback and more. Multiple units can be assembled using axial piston pumps of different sizes, and gear pumps. Possible configurations include circuits with built-in exchange valves and pressure relief valves.

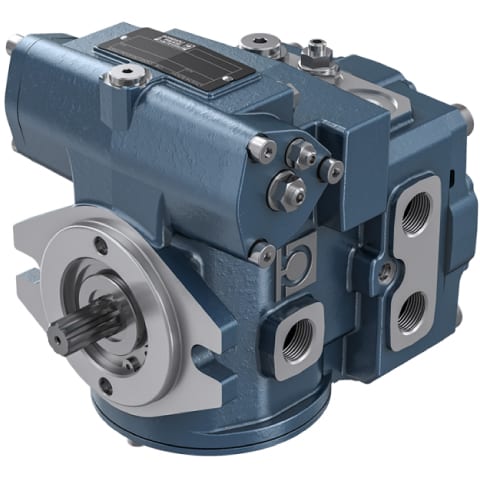

Bondioli 14cc - 23cc
-
11T Spline Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE A 2 Bolt Mounting Flange
- Max Pressure (Peak) 350 BAR
- Speed Range 500-4000 RPM
- Inbuilt Charge Pump
- Weight 16 kgs
Model Code Displacement Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options HPP2014LAXG*G20 14 CC/REV 3/4" 11 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 1/2" BSPP Download View options HPP2019LAXG*G20 19 CC/REV 3/4" 11 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 1/2" BSPP Download View options HPP2023LAXG*G20 23 CC/REV 3/4" 11 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 1/2" BSPP Download View options -
9T Spline Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE A 2 Bolt Mounting Flange
- Max Pressure (Peak) 350 BAR
- Speed Range 500-4000 RPM
- Inbuilt Charge Pump
- Weight 16 kgs
Model Code Displacement Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options HPP2014LAVG*G20 14 CC/REV 5/8" 9 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 1/2" BSPP Download View options HPP2019LAVG*G20 19 CC/REV 5/8" 9 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 1/2" BSPP Download View options HPP2023LAVG*G20 23 CC/REV 5/8" 9 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 1/2" BSPP Download View options -
13T Spline Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE A 2 Bolt Mounting Flange
- Max Pressure (Peak) 350 BAR
- Speed Range 500-4000 RPM
- Inbuilt Charge Pump
- Weight 16 kgs
Model Code Displacement Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options HPP2014LA9G*G20 14 CC/REV 7/8" 13 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 1/2" BSPP Download View options HPP2019LA9G*G20 19 CC/REV 7/8" 13 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 1/2" BSPP Download View options HPP2023LA9G*G20 23 CC/REV 7/8" 13 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 1/2" BSPP Download View options

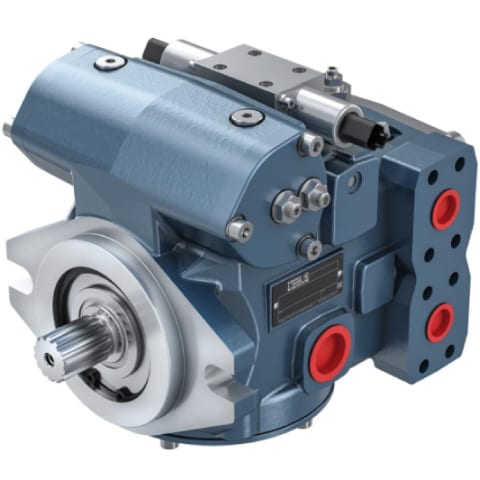

Bondioli 21cc - 37cc
-
15T Spline Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 350 BAR
- Speed Range 500-3600 RPM
- Inbuilt Charge Pump
- Weight 20 kgs
Model Code Displacement *Control Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options M4PV2121I2GBL3BR 21 CC/REV Lever Operated Servo 1" 15 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV2828I2GBL3BR 28 CC/REV Lever Operated Servo 1" 15 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV3737I2GBL3BR 37 CC/REV Lever Operated Servo 1" 15 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options -
7/8" Keyed Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 350 BAR
- Speed Range 500-3600 RPM
- Inbuilt Charge Pump
- Weight 20 kgs
Model Code Displacement *Control Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options M4PV2121I2GBL1BR 21 CC/REV Lever Operated Servo 7/8" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV2828I2GBL1BR 28 CC/REV Lever Operated Servo 7/8" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV3737I2GBL1BR 37 CC/REV Lever Operated Servo 7/8" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options -
1" Keyed Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 350 BAR
- Speed Range 500-3600 RPM
- Inbuilt Charge Pump
- Weight 20 kgs
Model Code Displacement *Control Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options M4PV2121I2GBL2BR 21 CC/REV Lever Operated Servo 1" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV2828I2GBL2BR 28 CC/REV Lever Operated Servo 1" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV3737I2GBL2BR 37 CC/REV Lever Operated Servo 1" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options -
13T Spline Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 350 BAR
- Speed Range 500-3600 RPM
- Inbuilt Charge Pump
- Weight 20 kgs
Model Code Displacement *Control Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options M4PV2121I2GBL6BR 21 CC/REV Lever Operated Servo 7/8" 13 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV2828I2GBL6BR 28 CC/REV Lever Operated Servo 7/8" 13 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV3737I2GBL6BR 37 CC/REV Lever Operated Servo 7/8" 13 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options -
11T Spline Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 350 BAR
- Speed Range 500-3600 RPM
- Inbuilt Charge Pump
- Weight 20 kgs
Model Code Displacement *Control Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options M4PV2121I2GBL7BR 21 CC/REV Lever Operated Servo 3/4" 11 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV2828I2GBL7BR 28 CC/REV Lever Operated Servo 3/4" 11 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV3737I2GBL7BR 37 CC/REV Lever Operated Servo 3/4" 11 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options
Bondioli 34cc - 65cc
-
15T Spline Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 400 BAR
- Speed Range 500-3800 RPM
- Inbuilt Charge Pump
- Weight 20 kgs
- ByPass Valve Included
Model Code Displacement *Control Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options M4PV3434I2GAL3BR 34 CC/REV Lever Operated Servo 1" 15 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV4646I2GAL3BR 46 CC/REV Lever Operated Servo 1" 15 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV5050I2GAL3BR 50 CC/REV Lever Operated Servo 1" 15 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV5858I2GAL3BR 58 CC/REV Lever Operated Servo 1" 15 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV6565I2GAL3BR 65 CC/REV Lever Operated Servo 1" 15 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options -
7/8" Keyed Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 400 BAR
- Speed Range 500-3800 RPM
- Inbuilt Charge Pump
- Weight 20 kgs
- ByPass Valve Included
Model Code Displacement *Control Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options M4PV3434I2GAL1BR 34 CC/REV Lever Operated Servo 7/8" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV4646I2GAL1BR 46 CC/REV Lever Operated Servo 7/8" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV5050I2GAL1BR 50 CC/REV Lever Operated Servo 7/8" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV5858I2GAL1BR 58 CC/REV Lever Operated Servo 7/8" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV6565I2GAL1BR 65 CC/REV Lever Operated Servo 7/8" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options -
1" Keyed Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 400 BAR
- Speed Range 500-3800 RPM
- Inbuilt Charge Pump
- Weight 20 kgs
- ByPass Valve Included
Model Code Displacement *Control Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options M4PV3434I2GAL2BR 34 CC/REV Lever Operated Servo 1" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV4646I2GAL2BR 46 CC/REV Lever Operated Servo 1" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV5050I2GAL2BR 50 CC/REV Lever Operated Servo 1" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV5858I2GAL2BR 58 CC/REV Lever Operated Servo 1" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV6565I2GAL2BR 65 CC/REV Lever Operated Servo 1" Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options -
30mm Keyed Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 400 BAR
- Speed Range 500-3800 RPM
- Inbuilt Charge Pump
- Weight 20 kgs
- ByPass Valve Included
Model Code Displacement *Control Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options M4PV3434I2GAL4BR 34 CC/REV Lever Operated Servo 30mm Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV4646I2GAL4BR 46 CC/REV Lever Operated Servo 30mm Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV5050I2GAL4BR 50 CC/REV Lever Operated Servo 30mm Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV5858I2GAL4BR 58 CC/REV Lever Operated Servo 30mm Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV6565I2GAL4BR 65 CC/REV Lever Operated Servo 30mm Keyed SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options -
13T Spline Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE B 2 Bolt Mounting Flange
- Max Pressure (Peak) 400 BAR
- Speed Range 500-3800 RPM
- Inbuilt Charge Pump
- Weight 20 kgs
- ByPass Valve Included
Model Code Displacement *Control Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options M4PV3434I2GAL6BR 34 CC/REV Lever Operated Servo 7/8" 13 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV4646I2GAL6BR 46 CC/REV Lever Operated Servo 7/8" 13 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV5050I2GAL6BR 50 CC/REV Lever Operated Servo 7/8" 13 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV5858I2GAL6BR 58 CC/REV Lever Operated Servo 7/8" 13 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options M4PV6565I2GAL6BR 65 CC/REV Lever Operated Servo 7/8" 13 Tooth Spline SAE A 5/8" 9 Tooth Spline 250 BAR 3/4" BSPP Download View options
Bondioli 82cc - 125cc
-
14T Spline Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE C 2/4 Bolt Mounting Flange
- Max Pressure (Peak) 450 BAR
- Speed Range 500-3000 RPM
- Inbuilt Charge Pump
- Weight 55 kgs
Model Code Displacement *Control Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options HPP8082LE3GLO20 82 CC/REV Lever Operated Servo 1-1/4" 14 Tooth Spline SAE A 5/8" 9 Tooth Spline 350 BAR 1" Code 62 Metric Download View options HPP8100LE3GLO20 100 CC/REV Lever Operated Servo 1-1/4" 14 Tooth Spline SAE A 5/8" 9 Tooth Spline 350 BAR 1" Code 62 Metric Download View options HPP8125LE3GLO20 125 CC/REV Lever Operated Servo 1-1/4" 14 Tooth Spline SAE A 5/8" 9 Tooth Spline 350 BAR 1" Code 62 Metric Download View options -
21T Spline Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE C 2/4 Bolt Mounting Flange
- Max Pressure (Peak) 450 BAR
- Speed Range 500-3000 RPM
- Inbuilt Charge Pump
- Weight 55 kgs
Model Code Displacement *Control Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options HPP8082LE7GLO20 82 CC/REV Lever Operated Servo 21 Tooth Spline SAE A 5/8" 9 Tooth Spline 350 BAR 1" Code 62 Metric Download View options HPP8100LE7GLO20 100 CC/REV Lever Operated Servo 21 Tooth Spline SAE A 5/8" 9 Tooth Spline 350 BAR 1" Code 62 Metric Download View options HPP8125LE7GLO20 125 CC/REV Lever Operated Servo 21 Tooth Spline SAE A 5/8" 9 Tooth Spline 350 BAR 1" Code 62 Metric Download View options -
23T Spline Shaft Piston Pumps
Bondioli Variable Closed Loop- SAE C 2/4 Bolt Mounting Flange
- Max Pressure (Peak) 450 BAR
- Speed Range 500-3000 RPM
- Inbuilt Charge Pump
- Weight 55 kgs
Model Code Displacement *Control Input Shaft Rear Pad Relief Setting Ports Spec Sheet Options HPP8082LE8GLO20 82 CC/REV Lever Operated Servo 23 Tooth Spline SAE A 5/8" 9 Tooth Spline 350 BAR 1" Code 62 Metric Download View options HPP8100LE8GLO20 100 CC/REV Lever Operated Servo 23 Tooth Spline SAE A 5/8" 9 Tooth Spline 350 BAR 1" Code 62 Metric Download View options HPP8125LE8GLO20 125 CC/REV Lever Operated Servo 23 Tooth Spline SAE A 5/8" 9 Tooth Spline 350 BAR 1" Code 62 Metric Download View options
